SIEMENS 6ES7214-1BD23-0XB8 New and Original High quality

6ES7214-1BD23-0XB8

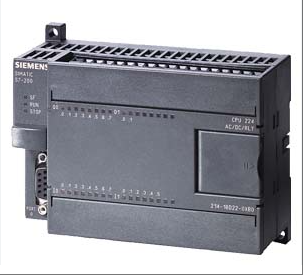

The 6ES7214-1BD23-0XB8 model product is a high-performance programmable logic controller (PLC) from the Siemens S7-200 series. Its core is the CPU 224 module, which has a compact structure and powerful functions. This product integrates 14 digital input and 10 digital output interfaces, and supports expansion to up to 7 modules (168 points) through expansion modules, adapting to complex industrial scene requirements. The 24V load power supply with built-in 280mA output current can be directly connected to sensors and actuators. Six high-speed counters (30kHz) and two 20kHz high-frequency pulse output interfaces enable it to accurately process high-speed signals, making it suitable for positioning tasks and stepper motor control. The module supports PPI, MPI, and free port communication protocols, and the programming cable is compatible with PC/PPI and PC USB interfaces, making it easy to network with upper computers and HMI devices. The integrated supercapacitor can achieve temporary storage of user data (such as flag bits, timers, counters) for 5 days after power failure. With the optional battery module, the storage time can be extended to 200 days to ensure the security of critical data. This product is widely used in the field of industrial automation, especially suitable for small and medium-sized control systems that require high real-time, scalability, and reliability.

Technical specifcations for 6ES7214-1BD23-0XB8

Input/output points:

Local digital input: 14 points

Local digital output: 10 points

The output type is relay, supporting a maximum of 7 expansion modules (expandable to 168 points)

Memory characteristics:

Program memory: 8192 bytes (online/offline program editing)

Data storage: 8192 bytes (backed up by supercapacitors or batteries)

Supercapacitors support data storage for approximately 5 days (with a minimum of 70 hours at a typical temperature of 40 ° C)

Optional battery module can extend storage time to 200 days (typical value)

High speed counter and pulse output:

Equipped with 6 high-speed counters (30kHz), supporting single-phase/two-phase counting modes

Provide 2 high-frequency pulse outputs (up to 20kHz), suitable for positioning control of stepper motors/servo motors

Communication interface:

Integrate 1 RS-485 interface

Supports PPI and MPI protocols, with a baud rate range of 9.6-187.5kbaud

Baud rate in free port mode 1.2-115.2kbaud

Power characteristics:

Input power supply: 100-230V AC

Integrated 24V DC load power supply (output current 280/400mA), can be directly connected to sensors/actuators

Scalability:

Up to 7 expansion modules can be connected (22x series)

Digital I/O mapping area: 256 points (128 inputs/128 outputs)

Analog I/O mapping area: 64 points (32 inputs/32 outputs)

Interrupt function:

Support edge triggered interrupts (rising edge/falling edge)

Time controlled interrupt (1ms increment, range 1-255ms)

Counter interrupt (triggered when the counter direction changes or reaches the set value)

Programming and Debugging:

Compatible with PC/PPI cable (6ES7901-3CB30-0XA0) and PC USB cable (6ES7901-3DB30-0XA0)

Support STEP 7-Micro/WIN programming software

Provide simulators (optional) for input signal simulation and program debugging

Physical characteristics:

Dimensions (W × H × D): 120.5 × 80 × 62mm

Weight: Approximately 410g

Power consumption: about 10W

Environmental adaptability:

Working temperature range: 0-60 ° C

Storage temperature range: -20-85 ° C

Relative humidity: 5-95% (no condensation)

Other features:

Integrate 2 analog potentiometers

Support password protection (Level 3 permission)

Provide data recording and recipe management functions

Compliant with RoHS environmental standards
