SIEMENS 6ES7214-1AE30-0XB0 New and Original High quality

6ES7214-1AE30-0XB0

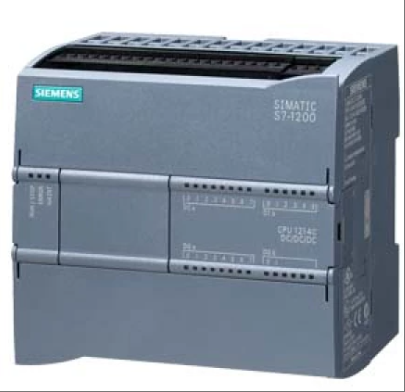

The 6ES7214-1AE30-0XB0 model product is a compact CPU module (CPU 1214C DC/DC) in the S7-1200 series PLC, designed specifically for small and medium-sized automation control scenarios. Its core architecture integrates 14 channels of 24V DC digital input (supporting source/drain type) and 10 channels of 24V DC digital output, equipped with 2 channels of 0-10V DC or 0-20mA analog input, which can real-time collect on-site sensor signals and drive actuators. This module has a built-in 50KB working memory and 2MB loading memory (supporting MicroSD card expansion to 24MB), equipped with PROFINET Ethernet interface, supports TCP/IP, S7 communication, and open user communication protocols, meeting the device interconnection requirements in Industry 4.0 environment. At the hardware level, it is powered by a wide voltage range of DC 20.4-28.8V, equipped with onboard real-time clock and EEPROM memory. It can operate stably in a wide temperature range of -25 ° C to+60 ° C, with a typical power consumption of only 12W. Its modular design supports the expansion of 2 analog outputs or 4 digital I/O channels through the signal board, and can be further expanded to 8 through the signal module. At the same time, it integrates 6 high-speed counters (up to 100kHz) and 2 pulse output channels to meet the control requirements of stepper/servo motors. This product has passed CE certification and is compatible with TIA Portal V10.5 and above programming software. It supports ladder diagram (LAD), functional block diagram (FBD), and structured control language (SCL) programming and is widely used in automotive manufacturing, food and beverage, packaging machinery, and other fields, achieving an integrated solution for logic control, motion control, and process monitoring.

Technical specifcations for 6ES7214-1AE30-0XB0

Model: 6ES7214-1AE30-0XB0

Type: CPU 1214C DC/DC/DC Compact Controller

Certification: CE certification, in compliance with industrial standards

2、 Interface and Communication

Onboard I/O interface:

Digital Input (DI): 14 channels, 24V DC, supports source/drain input

Digital output (DO): 10 channels, 24V DC

Analog input (AI): 2 channels, supporting 0-10V DC or 0-20mA signals

Communication interface: Integrated PROFINET interface (RJ45), supporting TCP/IP, S7 communication, and open user communication protocols

Scalability: Supports expanding analog output or digital I/O through signal board (SB), and expanding to 8 modules through signal module (SM)

3、 Performance parameters

Memory:

Working memory: 50KB

Loading memory: 2MB (expandable to 24MB through MicroSD card)

Processing speed:

Bit instruction execution time: 0.1 μ s

Word instruction execution time: 12 μ s

Floating point calculation time: 18 μ s

High speed counters: 6, up to 100kHz

Pulse output: 2 channels, supporting stepper/servo motor control

4、 Electrical parameters

Supply voltage: 20.4-28.8V DC

Power consumption: typical value of 12W

Output current: Backplane bus maximum 1.6A (5V DC)

Input/output current:

Digital input: 5V DC (1mA for "0" signal); 15V DC (2.5mA for "1" signal)

Digital output: maximum 500mA (per channel)

5、 Environmental adaptability

Working temperature range: -25 ° C to+60 ° C

Storage temperature range: -40 ° C to+85 ° C

Protection level: IP20 (when used in cabinets with a protection level of IP20)

Anti interference capability: compliant with EN 61000-6-2/4 standard, suitable for industrial electromagnetic environment

6、 Size and Installation

Size: Approximately 110mm (width) x 100mm (length) x 75mm (depth)

Weight: Approximately 0.2kg

Installation method: Supports DIN rail installation or installation inside the control cabinet

7、 Functional characteristics

Real time clock: Built in hardware clock, supports time synchronization

Diagnostic function: Provides status monitoring and fault diagnosis through LED indicator lights and TIA Portal software

Programming support: Compatible with TIA Portal V10.5 and above versions, supporting LAD, FBD, SCL programming languages

Security features: Supports password protection, access control, and data encryption (optional)
