SIEMENS 6ES7211-1AE31-0XB0 New and Original High quality

6ES7211-1AE31-0XB0

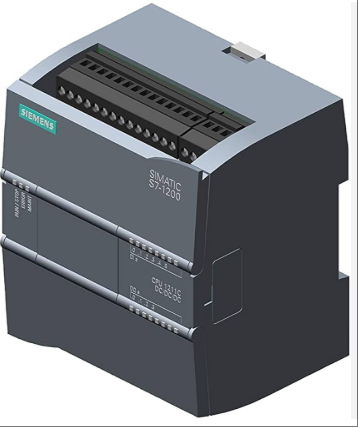

The 6ES721-1AE31-0XB0 model product is a compact CPU module in the Siemens S7-1200 series PLC, with high-performance logic control and data processing capabilities, capable of completing simple to advanced automation tasks. This module integrates 30KB working memory, 1MB loading memory, and supports expansion to 4MB through SIMATIC memory cards, suitable for small and medium-sized automation scenarios. Its digital input/output interface is 6 inputs/4 outputs, which can be expanded to 14 inputs/10 outputs, and integrates 2 analog input channels to meet the requirements of sensor signal acquisition and device control. The module supports PROFINET communication interface and is compatible with standard protocols such as TCP/IP and S7 communication, enabling efficient data exchange between HMI, programming computers, and third-party devices. Through the STEP 7 Basic programming software, users can easily complete engineering configuration and debugging. Its modular design supports combination with signal boards and modules, further expanding the number of I/O points and functions. This product, with its high reliability, compact structure, and flexible scalability, is widely used in industrial fields such as manufacturing production line control, building automation, and energy management. It is one of the core components for building efficient automation systems.

Technical specifcations for 6ES7211-1AE31-0XB0

Model and Series: This product belongs to the Siemens S7-1200 series PLC, with the specific model number 6ES721-1AE31-0XB0 and CPU model number CPU 1211C.

Power specifications:

Power type: Supports DC/DC/DC power supply mode.

Power supply voltage range: 20.4V DC to 28.8V DC, ensuring stable operation even in industrial power fluctuations.

Memory capacity:

Work memory: Integrated 30KB to meet the program storage requirements of small and medium-sized automation projects.

Loading memory: Integrated 1MB, expandable to 4MB through SIMATIC memory cards, convenient for storing large programs or data.

I/O interface configuration:

Digital input: 6 channels, supporting 24V DC signal input, suitable for collecting signals from various sensors and switches.

Digital output: 4-channel, supports 24V DC signal output, can directly drive small relays, indicator lights and other loads.

Analog input: Integrated with 2 channels, supporting 0-10V DC or 0-20mA signal input, meeting the requirements of analog monitoring such as temperature and pressure.

Communication interface: Integrated PROFINET Ethernet communication interface, supporting TCP/IP, S7 communication protocols, etc., can achieve real-time data interaction with HMI, programming devices, and third-party devices.

Scalability: This model has a compact design and cannot directly expand the I/O module. However, additional functions can be added through the signal board (SB) or signal module (SM), such as adding communication interfaces, digital/analog channels, etc.

Mechanical characteristics:

Installation method: Supports horizontal or vertical installation on DIN rails, or directly fixed to the control cabinet through integrated drilling.

Protection level: IP20, suitable for installation environment inside the control cabinet.

Environmental adaptability:

Working temperature range: 0 ℃ to 55 ℃, suitable for most industrial site environments.

Anti interference capability: Through EMC testing, it has high anti electromagnetic interference performance, ensuring stable operation in complex electrical environments.

Software support: Compatible with STEP 7 Basic programming software, providing a graphical programming interface and rich instruction set, supporting multiple programming languages such as LAD, FBD, STL, etc.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
