SIEMENS 6ES7193-6BP00-0BU0 New and Original High quality

6ES7193-6BP00-0BU0

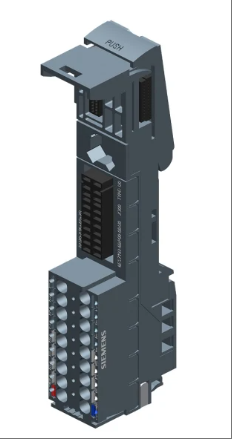

The 6ES7193-6BP00-0BU0 model product is the BaseUnit of Siemens ET200SP series distributed I/O system. It adopts a modular structure design, supports fast electrical connection through direct insertion terminals, and is not equipped with AUX auxiliary terminals. Its interface layout is a left side bridging type, and the physical dimensions of the module are 20mm wide by 117mm high. It is suitable for compact installation of industrial field control cabinets. As the basic component of the ET200SP system, this base unit can be used to build a distributed automation control network through standardized interfaces and expansion units such as I/O modules and communication modules. Its product lifecycle identification is PM300 (valid product), which complies with the RoHS environmental directive requirements and adopts the EAR99H export control code to ensure compliant circulation in the global industrial automation market.

Technical specifcations for 6ES7193-6BP00-0BU0

Product positioning and compatibility

Product type: ET200SP series BaseUnit, used for signal module installation and electrical connection in distributed I/O systems.

Interface module compatibility: Supports use with interface modules such as IM155-6PN ST, IM155-6PN HF, and IM155-6DP HF of ET200SP to achieve data exchange with controllers or DP master stations.

System Integration: As a fundamental component of the ET200SP system, it supports communication with I/O modules through a backplane bus and is suitable for building distributed automation control networks.

Structure and electrical parameters

Structural design: Adopting a compact modular design, supporting standard DIN35 rail installation, making it easy to flexibly layout in the control cabinet.

Size specifications: Width 15mm, height 117mm, depth 35mm, weight approximately 40g, suitable for industrial environments with limited space.

Electrical characteristics: Supports 24V DC power input, power wires are equipped with external safety devices, LS switch rated value is 24V DC/10A, and trip characteristics are B or C.

Current carrying capacity: The maximum current of the busbar is 10A, and the maximum current of the process terminal is 2A, meeting various load requirements.

function characteristics

Potential group management: supports the establishment of new potential groups, but cannot continue potential groups from the left side, suitable for scenarios that require independent potential isolation.

Terminal configuration: Adopting a direct insertion terminal design, without AUX auxiliary terminals, supporting fast electrical connections and improving installation efficiency.

Scalability: Supports expanding communication interfaces through bus adapters, such as RJ45 or FC quick connect adapters, to enhance system flexibility.

Environment and Certification

Environmental adaptability: The operating temperature range for horizontal installation is -30 ° C to 60 ° C, and for vertical installation it is -30 ° C to 50 ° C. The maximum installation height is 5000m (refer to the manual for>2000m).

Insulation and Testing: Supports 707V DC insulation testing to ensure electrical isolation performance between potential groups.

Compliance certification: Complies with CE certification requirements to ensure electromagnetic compatibility and safety; Compliant with RoHS directive and prohibited from using hazardous substances; The export control code is 9N1125 (AL: N/ECCN: N).

Packaging and Supply

Packaging form: individually packaged without specific packaging size information (as the product is a modular component).
