SIEMENS 6ES7153-1AA83-0XB0 New and Original High quality

6ES7153-1AA83-0XB0

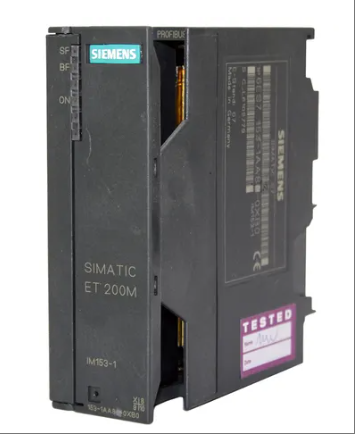

The 6ES7153-1AA83-0XB0 model product is a Siemens SIMATIC DP interface module, which belongs to the ET200M distributed I/O system component. It adopts the PROFIBUS DP communication protocol and supports modular expansion of the S7-300 series automation system. It can install up to 8 or 12 I/O modules through special-shaped guide rails and has hot swappable function. It is suitable for industrial fields such as metallurgy, pharmaceuticals, chemical engineering, and automobiles. As an interface module of the ET200M system, it realizes communication connection with the PROFIBUS master station. Its modular design can meet the flexibility and scalability requirements of complex automation tasks.

Technical specifcations for 6ES7153-1AA83-0XB0

Transmission Protocol and Rate:

Transmission protocol: PROFIBUS DP, compliant with EN 50170 standard.

Transmission rate: Maximum 12 Mbit/s, supports automatic recognition of bus system transmission rate.

Interface and Connection:

Interface type: PROFIBUS DP interface, using 9-pin sub-D connector.

Output current: Maximum 90 mA (for PROFIBUS DP interface).

Power requirements:

Power supply voltage: rated value of 24 V DC, allowable range (including ripple) is 20.4 to 28.8 V.

Backup in case of power failure: 5 ms 24VDC, current consumption 625 mA.

Output voltage: 5 V DC, maximum output current (at 5VDC) 1 A (for backplane bus).

Module expansion capability:

In the S7-300 automation system, a maximum of 8 or 12 I/O modules can be connected (the specific number may vary depending on the configuration, but is usually 8).

The interface module and necessary I/O modules are installed on the special-shaped guide rail of S7-300, and the I/O modules are connected to each other with bus connectors and to the IM 153 interface module.

Environmental adaptability:

Protection level: IP20.

Environmental temperature: 0-60 ° C (outdoor: -25 to 60 ° C).

Physical dimensions and weight:

Dimensions (W x H x D): 40 x 125 x 120 mm.

Weight: Approximately 0.35 kg.

Compatibility and Support:

Support communication between internal nodes.

Address space: Maximum input of 128 bytes, output of 128 bytes.

Insulation voltage: 500 V.
