SIEMENS 6ES7151-8AB01-0AB0 New and Original High quality

6ES7151-8AB01-0AB0

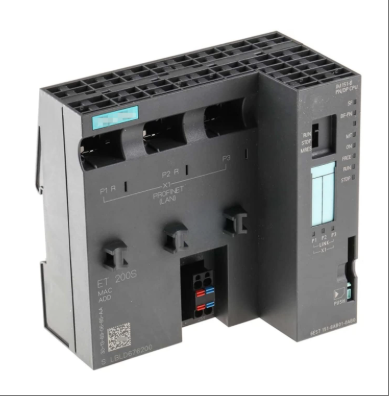

The 6ES7151-8AB01-0AB0 model product is a CPU interface module designed for the ET200S distributed I/O system. It integrates PROFINET interface (with three RJ45 ports) as an IO controller, has 192KB working memory, and needs to be used in conjunction with SIMATIC miniature memory cards (MMC) (supporting a maximum capacity of 8MB). It is suitable for high-performance distributed control scenarios in the industrial automation field. This module adopts a modular structure, supports on-site installation, complies with IP20 protection level, and can operate stably in an environment temperature of 0 to 60 ° C. It realizes real-time data exchange with the upper PLC or other devices through PROFINET network, and is particularly suitable for small and medium-sized automation systems that require fast data processing and flexible expansion.

Technical specifcations for 6ES7151-8AB01-0AB0

CPU model and interface: The CPU model of this module is IM151-8 PN/DP, equipped with PROFINET interface, which has three RJ45 ports and can be used as an input/output controller.

Memory: The module has 192KB of main memory, but requires the use of SIMATIC Micro Memory Card (MMC) as the loading memory for programs, with a maximum support capacity of 8MB.

Size and weight: The size of the module is 12.8x15.5x9, with a net weight of 0.387Kg.

Protection level and ambient temperature: The protection level of the module is IP20, and the ambient temperature range is 0 to 60 ° C.

Scalability: The scalability varies depending on the type of module. For example, the IM151-1 BASIC and IM151-1 COMPACT types can connect up to 12 modules, while the IM151-1 STANDARD, IM151-1 HIGH-FEATURE, IM151-7 CPU, and IM151-3 PN types can connect up to 63 modules.

User data length and parameter length: These parameters depend on the number and type of connected modules. For example, IM151-1 BASIC has a maximum user data length of 88 bytes for input and output, and a parameter length of 198 bytes; The IM151-1 STANDARD and IM151-1 HIGH-FEATURE have a maximum user data length of 244 bytes for input and output, and a parameter length of up to 244 bytes.

Network and Communication: The module supports PROFIBUS DP master system and complies with EN 50170 standard. The length of parameters and user data will vary depending on the number and type of connected modules.

Standards and certifications: The module complies with multiple international standards and certifications, such as PROFIBUS's EN 50170, IEC 1131 standards, as well as UL, RCM, CSA certifications, etc. It also has explosion-proof certification (Cat.3, for Zone 2, compliant with ATEX-100a).

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
