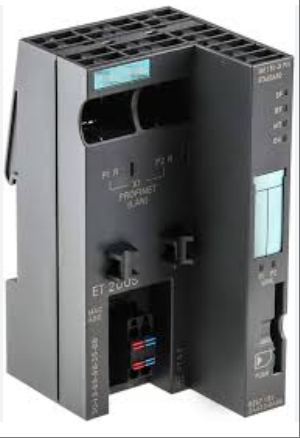

SIEMENS 6ES7151-3AA23-0AB0 New and Original High quality

6ES7151-3AA23-0AB0

Network architecture: Dual gigabit RJ45 ports support daisy chain/star topology, port mirroring can replicate data streams to analysis tools, VLAN partitioning achieves subnet isolation;

Real time communication: Based on PROFINET IRT (synchronous real-time) technology, the shortest cycle time is 125 μ s, and the jitter is less than 1 μ s, meeting the requirements of motion control and synchronization;

Security protection: integrates firewall rules, access control lists (ACLs), MAC address filtering, supports OPC UA Secure Channel and TLS 1.3 encryption protocols;

Engineering integration: Implementing topology automatic recognition, batch IP address allocation, and firmware online upgrade through TIA Portal, supporting PROFIdrive/PROFIsafe line rules;

Environmental adaptability: Operating temperature range of -25 ° C to+60 ° C, anti electromagnetic interference (EN 61000-6-2/4), certified by UL 61010-1, CE/FCC, etc.

This module is commonly used as the main control unit of distributed I/O systems in industrial sites. It constructs a high availability network through a redundant fiber optic ring network (PRP/HSR) and remote sub stations (such as ET 200SP), achieving millisecond level control response and transparent data transmission in scenarios such as automotive welding production lines and lithium battery coating machines.

Technical specifcations for 6ES7151-3AA23-0AB0

Basic information

Model: 6ES7151-3AA23-0AB0

Series: ET200SP

Origin: Germany

Certification: Passed CCC certification and meets industrial standards

2、 Interface and Communication

Interface type: PROFINET IO (RJ45 port)

Transmission rate: Supports 100MBit/s

Communication protocol: Supports protocols such as isochronous real-time communication (IRT), Modbus RTU, USS, etc

Switch function: Integrated 2-port switch, supporting LLDP, port diagnosis, and disabling functions

3、 Performance parameters

I/O expansion capability:

By default, it supports 16 point I/O and can expand up to 63 modules.

Backplane bus length ≤ 2m.

Support module grouping (packaging) and option processing within bytes.

Processing speed:

The execution time of the bit instruction is 0.15 μ s.

The program processing speed is 13kb.

Interrupt types: including diagnostic interrupts, process interrupts, module insertion/removal interrupts, etc.

Working voltage: 24V DC, supports ungrounded configuration (connected to reference potential through RC combination).

Output frequency: compatible with 47-63Hz (power frequency) or 50-60kHz in scenarios.

4、 Size and Installation

Dimensions: 8.8cm (length) x 10.8cm (width) x 5.7cm (height)

Weight: approximately 0.201~0.202kg

Installation method: Supports rail or screw installation, with detachable terminals

5、 Firmware and Data

Firmware update: implemented through SIMATIC MMC card or PROFINET

Data retention: Backup device name and configuration through MMC card

Network diagnosis: supports protocols such as SNMP/MIB-2 and LLDP, and provides port status monitoring

6、 Environmental adaptability

Working temperature range: -25 ° C to+60 ° C

Protection level: IP20 (when used in cabinets with a protection level of IP20)

Other features: Fanless design, suitable for high humidity, condensation, and foggy environmental conditions

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
