SIEMENS 6ES7144-4GF01-0AB0 New and Original High quality

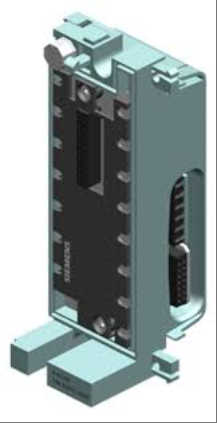

6ES7144-4GF01-0AB0

The 6ES7144-4GF01-0AB0 model product is an analog input electronic module suitable for ET 200 PRO under the SIMATIC DP series. It has 4-channel high-precision signal acquisition capability, supports multiple current signal ranges such as ± 20mA, 0-20mA, 4-20mA, etc., and is equipped with channel diagnostic function to monitor the real-time operation status of the module. It interacts with the control system through the PROFIBUS-DP bus for data exchange. The module adopts a compact structure design (weighing about 0.178kg) and is compatible with DIN rail installation. The protection level is IP20 to meet the protection needs of industrial sites. The working temperature range is -25 ° C to+60 ° C, suitable for real-time monitoring of process parameters such as temperature, pressure, flow rate in chemical, energy, manufacturing and other process industries. Control scenarios require the use of the 6ES7194-4.. 0.00-0AA0 bus module to achieve complete communication functionality.

Technical specifcations for 6ES7144-4GF01-0AB0

Interface and signal acquisition

Number of channels: 4 channels for analog input

Signal range: support multiple current signal ranges such as ± 20mA, 0-20mA, 4-20mA, and can adapt to different sensor output requirements

Diagnostic function: Equipped with channel diagnostic function, it can monitor the real-time operation status of the module, detect and report faults in a timely manner

2、 Communication and Bus

Bus type: Through the PROFIBUS-DP bus, data exchange is carried out with the control system to achieve efficient and stable data transmission

Interface module: including bus module, interface module IO 6ES7194-4.. 0.00-0AA0 needs to be ordered separately to complete the complete communication function

3、 Machinery and Protection

Installation method: Adopting a compact structural design, compatible with DIN rail installation, easy to integrate in the cabinet

Protection level: IP20, meeting the protection requirements of industrial sites, effectively preventing the entry of solid foreign objects and the risk of electric shock

Weight: Approximately 0.178kg, lightweight design for easy installation and maintenance

4、 Environment and working conditions

Working temperature range: -25 ° C to+60 ° C, suitable for different industrial environment temperatures

Storage temperature range: -40 ° C to+85 ° C, ensuring stable module performance under extreme conditions

Relative humidity: 30%, can still operate reliably in specific humidity environments

5、 Application scenarios

Industry field: widely used in process industries such as chemical, energy, manufacturing, etc

Monitoring object: Suitable for real-time monitoring and control scenarios of process parameters such as temperature, pressure, flow rate, etc., to improve the level of production automation

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
