SIEMENS 6ES7142-4BD00-0AB0 New and Original High quality

6ES7142-4BD00-0AB0

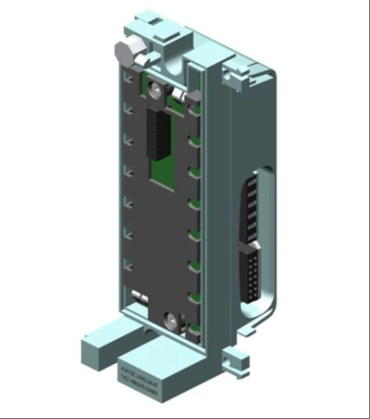

The 6ES7142-4BD00-0AB0 model product is a digital output expansion module in the Siemens SIMATIC ET 200PRO series, designed specifically for industrial automation control scenarios. It has a 4-channel 24V DC digital output function, with a maximum output current of 2.0A per channel. It supports advanced functions such as channel diagnosis, short circuit, and wire breakage detection, and can be seamlessly integrated with S7-1200/1500 controllers. It is suitable for industrial fields such as mechanical manufacturing, food processing, and energy monitoring that require high-precision digital signal control. This module adopts a compact design (7.4 × 13.6 × 6.8cm), supports DIN rail installation, has a protection level of IP20, complies with PROFINET CC-A standards, and achieves on-site status diagnosis through LED indicator lights. The built-in automatic crossover function simplifies network connections. With its high compatibility, modular design, and safety features, it can significantly improve the flexibility and reliability of industrial automation systems, reduce maintenance costs, and optimize production efficiency.

Technical specifcations for 6ES7142-4BD00-0AB0

Specification

Product model: 6ES7142-4BD00-0AB0

Product Series: SIMATIC ET 200PRO

Product Type: Digital Expansion Module

2、 Input/output specifications

Number of output channels: 4 channels

Output type: 24V DC digital output

Maximum output current per channel: 2.0A

3、 Functional characteristics

Channel diagnosis: Supports channel level diagnostic function, which can monitor the status of each channel in real time.

Short circuit and wire breakage detection: equipped with short circuit protection and wire breakage detection functions, improving system safety.

Bus module and interface module: including bus module, interface module IO 6ES7194-4.. 0.00-0AA0 needs to be ordered separately.

4、 Physical characteristics

Packaging dimensions: 7.40cm (length) x 13.60cm (width) x 6.80cm (height)

Net weight: approximately 0.180Kg

Installation method: DIN rail installation, suitable for installation inside control cabinets.

Protection level: IP20, suitable for industrial environments.

5、 Environmental adaptability

Working temperature range: usually suitable for 0 ℃ to 55 ℃ (please refer to the product manual for details)

Storage temperature range: -25 ℃ to 70 ℃

Relative humidity range: 5% to 95% (no condensation)

6、 Electrical characteristics

Input voltage: 24V DC

Power consumption: The specific power consumption value needs to refer to the product manual, but it is usually lower and suitable for industrial automation systems.

7、 Communication and Protocol

Communication standard: Complies with PROFINET CC-A standard and meets PROFINET communication requirements.

Network topology: Supports the establishment of small electrical star or bus topologies through Scalance XCB004Smart unmanaged industrial Ethernet switches.

8、 Compliance and Certification

RoHS compliance: Compliant with RoHS directive requirements, free of harmful substances such as halogens.

Export control: The export control regulations are AL: N/ECCN: 9N9999.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
