SIEMENS 6ES7141-6BH00-0AB0 New and Original High quality

6ES7141-6BH00-0AB0

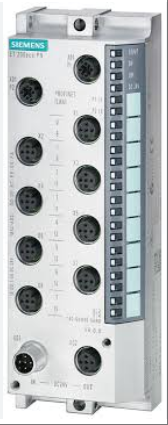

The 6ES714-6BH00-0AB0 model product is a Siemens ET200 series digital input module, which belongs to a high protection level distributed I/O device. This module integrates a 16 channel 24V DC digital input interface, supports dual occupancy connection through 8 M12 ports, is compatible with PROFINET protocol and multiple fieldbus standards, and can adapt to harsh industrial scenarios with a wide temperature range of -25 ° C to+60 ° C and IP67 protection level. Its input characteristics comply with the IEC 61131-3 standard, with a 3ms fast response delay and short-circuit protection function. It can synchronously process switch signals and sensing data of 2-wire/4-wire proximity switches, and is suitable for real-time signal acquisition and process monitoring in fields such as mechanical manufacturing, automation production lines, and intelligent buildings. The module adopts a compact design, supports redundant mode and synchronous operation, and achieves power supply voltage monitoring and fault warning through integrated diagnostic functions, ensuring reliable operation and efficient maintenance of industrial sites.

Technical specifcations for 6ES7141-6BH00-0AB0

Model: 6ES714-6BH00-0AB0

Series: ET200eco PN

2、 Electrical parameters

Power supply voltage: rated at DC 24V, with reverse polarity protection function, in compliance with NEC Class 2 requirements.

Input current: The typical current consumption is 100mA (from a power supply voltage of 1L+), with a maximum value of 4A.

Sensor power supply: Provides 8 24V sensor power output terminals, each with a maximum current of 100mA, and has short-circuit protection function.

Input voltage range: -3V to+5V for signal "0" and+11V to+30V for signal "1".

Input current (signal "1"): The typical value is 7mA.

Input delay: When the input voltage is at rated value, the typical delay time from "0" to "1" or from "1" to "0" is 3ms.

3、 Structure and Design

Number of input channels: 16 digital input channels, of which 2 input characteristics comply with IEC 61131 standard, type 3.

Interface type: Provides one M12 port, supports 100BASE-TX PROFINET transmission mode, and has physical interface features such as integrated switches.

Protection level: With advanced panel protection level, it can operate stably in harsh environments.

Dimensions: Specific dimensions may vary slightly depending on the product batch or version, but they are usually designed to be compact, easy to install and maintain.

Weight: The weight may vary depending on the product configuration, but it is generally lightweight and easy to handle and install.

4、 Function and Features

High speed response: Equipped with a high-speed processor, it can quickly respond to various changes in the production process, ensuring the real-time performance of the control system.

Easy to integrate: The module design is flexible and seamlessly integrates with other Siemens PLC products, allowing users to expand and adjust according to their actual needs.

Rich interfaces: Provides multiple input and output interfaces to meet the connection requirements of different devices and enhance system compatibility.

High reliability: After strict quality testing, the module can ensure stable operation even in complex environments and is commonly used in industries such as metallurgy and chemical engineering.

Diagnostic function: Supports power voltage monitoring, signal sensor wire breakage detection, sensor power short circuit detection, and other functions, making it easy for users to detect and solve problems in a timely manner.

Redundancy mode: Supports MRP redundancy mode to improve system reliability and availability.

5、 Environmental adaptability

Working temperature range: It can typically operate stably in an environment ranging from -25 ° C to+60 ° C (or a wider range, such as -40 ° C to+100 ° C, depending on the product version and configuration).

Environmental humidity: It can work normally within a certain humidity range, but the specific value may vary depending on the product version and configuration.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
