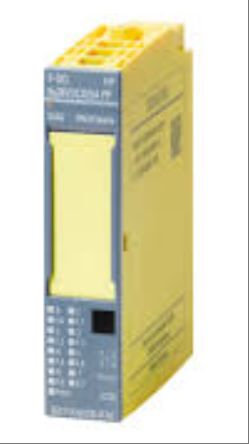

SIEMENS 6ES7136-6DC00-0CA0 New and Original High quality

6ES7136-6DC00-0CA0

The 6ES7136-6DC00-0CA0 model product is a secure digital output module of the SIMATIC ET 200SP series, designed specifically for high security industrial applications. This module has 8 independent 24V DC outputs, each with a maximum output current of 0.5A. It adopts a compact 15mm width design, which complies with PL e (ISO 13849) and SIL 3 (IEC 61508) safety standards. It is suitable for scenarios that require high safety output control, such as safety door drives and emergency stop devices. Its built-in enhanced diagnostic and self checking functions can monitor and provide real-time troubleshooting, support the use of safety CPUs compatible with the PROFIsafe protocol, seamlessly integrate with the SIMATIC ET 200SP distributed I/O system, have high compatibility and easy installation, effectively replace traditional safety relays, reduce wiring, and improve system stability.

Technical specifcations for 6ES7136-6DC00-0CA0

Detailed description of parameter categories

Brand SIEMENS

Model 6ES7136-6DC00-0CA0

Product Type SIMATIC ET 200SP Series Fault Safe Digital Output Module

8 output channels

Output type: Digital output, supports PP (Push Pull) switch type, source output

Rated voltage 24V DC

The maximum output current per channel is 0.5A (some information mentions that some modules support 2A per channel, but this model is 0.5A)

Safety standards comply with SIL 3 (IEC 61508) and PL e (ISO 13849) safety standards

The encoding method adopts automatic electronic encoding

The front of the indicator light module is equipped with LED indicator lights for displaying errors, operation, and power supply voltage

Pure text identification of module type and functional level, two-dimensional matrix code (including order number and serial number), wiring diagram, DQ module color code in black

The base unit can be inserted into A0 type base unit (BU)

The communication protocol supports PROFIsafe, which can be used in both PROFIBUS and PROFINET configurations

Compatibility can be used with all fail safe SIMATIC S7 CPUs

The base unit (BU) requires a BU with an appropriate number of terminals for single or multi wire connections. A light colored BU can open a new load group, and sensor power must be fed into the BU through this BU

The power feeding requirement is that the BU next to the interface module must be a light colored BU. The dark colored BU can feed forward the power supply of the adjacent light colored BU on the left side through a self-assembled voltage bus, so only the next light colored BU on the right side needs to be newly fed

All models with terminal potential identification corresponding to the BU type of the I/O module can be used as BU. The potential at the BU terminal is defined by the I/O module or identified by module specific color coded labels

The color coded labels that match the corresponding I/O modules are defined by the CCxx color code of the I/O module, which is also printed on the front of the module. In BU with 10 built-in jumper AUX terminals, these terminals can also be identified using color coded labels

AUX terminal coding labels provide red, blue, yellow/green coding labels for 10 AUX terminals

The cable shielding end connection is a space saving and electromagnetic compatibility optimized cable shielding end, providing a quick and convenient installation shielding joint, including a shielding connection element (insertable into BU) and a shielding terminal that can be used for all modules

Working temperature range: 0 ° C~60 ° C

Protection level related to intrusion protection (specific level needs to refer to official documents)

Certification complies with ROHS3 standards, not affected by REACH, ECCN is EAR99, HTSUS is 8537.10.9170

Packaging form: Bulk

The status of the parts is on sale

Installation type requires basic version

End connection style requirements: Basic version
