SIEMENS 6ES7134-6PA00-0CU0 New and Original High quality

6ES7134-6PA00-0CU0

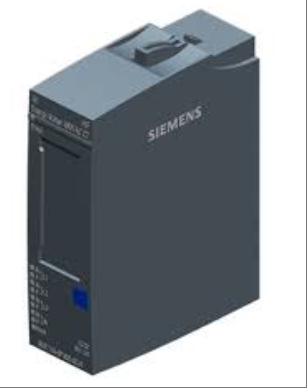

The 6ES7134-6PA00-0CU0 model product is a high-performance analog input module from Siemens SIMATIC ET 200SP series, designed specifically for industrial automation systems. It supports energy metering and power analysis in 480V AC/CT (current transformer) scenarios and can be adapted to 1A or 5A current transformers. It has functions for measuring electrical parameters such as voltage, current, frequency, power, and power factor, as well as monitoring power quality such as harmonic analysis and voltage sag/rise. It is compatible with TT, TN, IT and other power supply systems, suitable for U0 type base units, and supports channel diagnosis. It can be configured through STEP 7 TIA Portal or V5.5 SP3 and above versions for engineering. The modular design is easy to integrate into distributed I/O systems and meets the requirements. The demand for high-precision analog data acquisition and energy management in complex industrial control environments.

Technical specifcations for 6ES7134-6PA00-0CU0

Product type: AI Energy Meter 480 VAC/CT HF, also known as artificial intelligence meter, used for 480V AC current transformer (CT) scenarios.

Function:

Voltage measurement: supports two methods: without voltage transformer and with voltage transformer.

Current measurement: Supports 1A or 5A current transformers, does not support Roche coils.

Energy measurement: supports active and reactive power measurement and power factor calculation.

Power quality monitoring: including harmonic analysis (current and voltage), voltage sag/sag monitoring, etc.

Line analysis: supports instantaneous and half wave monitoring, total harmonic distortion (THD) measurement, etc.

IM data: Supports IM0 to IM3 data.

Supported power supply systems: TT, TN, IT.

Engineering configuration:

Support configuration through STEP 7 TIA Portal (V15 and above) or STEP 7 (V5.5 SP3 and above).

Supports communication between PROFIBUS and PROFINET, requiring the use of corresponding GSD files (versions 3 and 5 and above).

Operation mode:

Support switching operation modes during runtime.

Support cyclic and non cyclic measurement value access.

Support fixed and freely definable sets of measurement values.

Support reparameterization and calibration during operation.

Installation and power supply:

Installation location: Any.

Power supply voltage: DC 24V, allowable range is 19.2V to 28.8V.

Rated current consumption: 12.5mA, maximum 17mA.

Power loss: The typical value is 1.4W.
