SIEMENS 6ES7134-6JD00-2CA1 New and Original High quality

6ES7134-6JD00-2CA1

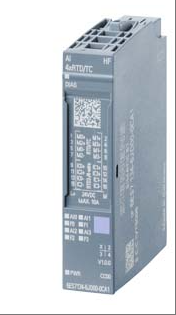

The 6ES7134-6JD00-2CA1 model product is a high-performance analog input module of Siemens ET 200SP series, designed specifically for the industrial automation field. It supports 4-channel thermistor (RTD) or thermocouple (TC) signal acquisition, with 16 bit resolution and ± 0.1% accuracy. It is compatible with 2-wire, 3-wire, or 4-wire sensor connections and is suitable for complex temperature measurement scenarios. This module integrates channel diagnostic functions and supports PROFINET/PROFIBUS communication protocols. It can be quickly configured through STEP 7 TIA Portal or PCS 7 software and seamlessly integrated with S7-1200/S7-1500 series PLCs to meet the high-precision temperature monitoring needs of process industries such as chemical, pharmaceutical, and metallurgical industries. Its modular design supports hot swappable maintenance, with a protection level of IP20 and a working temperature range of -25 ℃ to+60 ℃. It also has overvoltage and reverse connection protection functions to ensure stable operation in harsh industrial environments.

Technical specifcations for 6ES7134-6JD00-2CA1

Basic information

Model: 6ES7134-6JD00-2CA1

Series: SIMATIC ET 200SP

Type: Analog Input Module (AI)

Number of input channels: 4 channels

Input type: Supports Thermistor (RTD) and Thermocouple (TC) sensors

Connection method: compatible with 2-wire, 3-wire, and 4-wire sensors

2、 Electrical parameters

Supply voltage: DC 24V (rated value), allowable range 19.2V to 28.8V

Input current: maximum 35mA

Power loss: typical value 0.75W

Reverse polarity protection: equipped with reverse polarity protection function

3、 Performance parameters

Resolution: 16 bits

Accuracy: ± 0.1%

Channel diagnosis: supports channel level diagnostic function

Temperature measurement range: configurable in units of ° C, ° F, K

Measurement range:

Voltage input: -1V to+1V, -250mV to+250mV, -50mV to+50mV, -80mV to+80mV

Thermistor/thermocouple: configured according to sensor type

4、 Communication and Interface

Protocol support: PROFINET, PROFIBUS (configured through GSD file)

Programming support:

STEP 7 TIA Portal (V14 and above versions)

PCS 7 (V8.1 SP1 and above versions)

Address space: Maximum 8 bytes per module (including 1 byte of QI information)

5、 Mechanical and Installation

Installation method: DIN rail installation

Terminal style: screw terminal

Protection level: IP20

Color code: CC00 (module identification color)

Mechanical code: Type A

Working temperature range: -30 ℃ to+60 ℃

6、 Expansion and Compatibility

Base unit adaptation: supports BU types A0 and A1

Firmware Update: Supports firmware updates through software

Reparameterization: supports runtime reconfiguration (RUN mode)

Calibration: Supports calibration during operation

7、 Environment and Compliance

RoHS: Compliant with RoHS 3 specifications

REACH: Not affected by REACH

Moisture Sensitivity Level (MSL): Not Applicable
