6ES7133-1BL11-0XB0

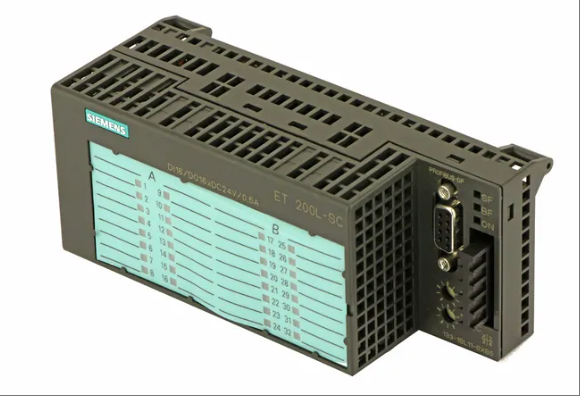

The 6ES7133-1BL11-0XB0 model product is a high protection communication module in the Siemens ET 200L distributed I/O system, designed specifically for industrial automation scenarios. It features a compact corrugated aluminum reinforced housing (IP30 protection level), supports 35mm DIN rail installation, and is compatible with the PROFIBUS-DP communication protocol. It can integrate 16 channel digital input and 16 channel digital output (24V DC/0.5A), making it suitable for device networking and signal transmission in harsh environments. This module has passed strict electromagnetic compatibility testing (in accordance with the IEC61000 series standards) and has characteristics such as anti-static (air ± 8KV/contact ± 4KV) and anti surge (L-N ± 1KV/L/N-PE ± 2KV). It can operate stably in environments ranging from -10 ℃ to 70 ℃ (wide temperature version can choose -40 ℃ to+85 ℃), and is suitable for industrial scenarios such as automotive manufacturing lines and chemical process control that require strict system reliability. It is the core component for building distributed automation networks.
Technical specifcations for 6ES7133-1BL11-0XB0
Mechanical and installation characteristics
Dimensions: 132mm × 105mm × 52mm, compact design for easy integration into the control cabinet.
Shell protection level: IP30, suitable for installation environment inside the control cabinet, can effectively prevent the intrusion of dust and solid foreign objects.
Installation method: Supports 35mm DIN rail installation, meeting the standard installation requirements of industrial automation sites.
Weight: 800g, lightweight design for easy installation and maintenance.
2、 Electrical parameters
Working voltage: 24V DC, suitable for common DC power supply systems in industrial automation.
Digital input channel: 16 channels, supporting 24V DC signal input, can connect various sensors and switch devices.
Digital output channel: 16 channels, supporting 24V DC/0.5A signal output, can directly drive small relays, indicator lights and other loads.
Load capacity: Each channel outputs a current of 0.5A, and the total output current needs to be allocated according to specific applications.
3、 Environmental adaptability
Working temperature range: The standard version is from -10 ℃ to 70 ℃, and the wide temperature version can be selected from -40 ℃ to+85 ℃, suitable for extreme temperature environments.
Relative humidity: ≤ 90% (no condensation), ensuring stable operation in high humidity environments.
Storage temperature range: -40 ℃ to 80 ℃, meeting long-term storage and transportation requirements.
4、 Electromagnetic compatibility and testing certification
Electrostatic discharge (ESD) immunity: compliant with IEC61000-4-2 standard, air discharge ± 8KV, contact discharge ± 4KV.
Radiated Immunity (RS): Compliant with IEC61000-4-3 standard, 10V/m (80-1000MHz).
Electrical Fast Transient (EFT) Immunity: Compliant with IEC61000-4-4 standard, power line ± 2KV, data line ± 1.0KV.
Surge immunity: compliant with IEC61000-4-5 standard, power line L-N ± 1KV, L/N-PE ± 2KV, data line ± 0.5KV.
Conducted Disturbance (CS) Immunity: Compliant with IEC61000-4-6 standard, 10V (150kHz-80MHz).
Power frequency magnetic field (MS) immunity: compliant with IEC61000-4-8 standard, with a long-term of 30A/m and a short-term of 300A/m.
Voltage sag and short interruption (Dips) immunity: compliant with IEC61000-4-11 standard, ensuring stability during power grid fluctuations.
5、 Communication and Interface
Communication protocol: Supports PROFIBUS-DP protocol, suitable for high-speed data transmission in distributed automation systems.
Interface type: Adopting PROFIBUS-DP interface, it can seamlessly connect with Siemens S7 series PLC and other compatible devices.
6、 Application scenarios
Industrial automation: suitable for harsh industrial environments such as automobile manufacturing, chemical process control, equipment monitoring, etc.
Distributed Control: It can serve as the core module of the ET 200L distributed I/O system, enabling flexible expansion and efficient control of field level devices.
