SIEMENS 6ES7132-6BH01-0BA0 New and Original High quality

6ES7132-6BH01-0BA0

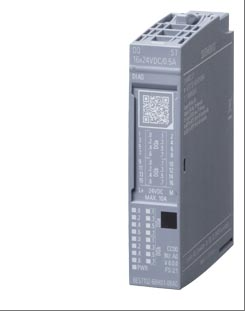

The 6ES7132-6BH01-0BA0 model product is a digital output module from the Siemens SIMATIC ET 200SP series. Its core function is to convert internal PLC signals into 24V DC digital output, support 16 channel independent control, and have a maximum load current of 0.5A per channel. It is suitable for driving industrial actuators such as solenoid valves and contactors. This module adopts a source output (PNP) design and has diagnostic functions such as short circuit protection, wire breakage detection, and power supply voltage monitoring. By integrating mechanical coding keys and automatic coding mechanisms, it can seamlessly adapt to A0 type base units, ensuring the accuracy and reliability of electrical connections. Its working voltage range is 19.2-28.8V DC, with built-in reverse polarity protection and a typical power consumption of only 1W. The module size is 15mm × 73mm × 58mm, with a weight of about 30g. It supports configuration through STEP 7 TIA Portal (V14 and above), STEP 7 (V5.5 SP3 and above), and PCS 7 (V8.1 SP1 and above) software. It is widely used in automation production lines in industries such as automotive manufacturing, chemical engineering, and power, meeting the efficient transmission of digital signals and equipment driving requirements in medium and small-scale control systems.

Technical specifcations for 6ES7132-6BH01-0BA0

Product identification and type:

The product type symbol is DQ 16x24VDC/0.5A ST, indicating that the module has 16 digital output channels, each supporting 24V DC voltage and a maximum output current of 0.5A.

The hardware function status is FS03 or above, indicating that its hardware function is relatively mature and stable.

Power supply and electrical parameters:

The rated voltage of the power supply is 24V DC, with an allowable range of 19.2V DC to 28.8V DC, and it has reverse polarity protection function.

The maximum current consumption is 60mA (under no-load conditions), and the typical power loss is 1W.

Output characteristics:

The digital output type is source output (PNP, switchable P), supporting programmable digital output terminals.

Each output terminal has a short-circuit protection function, with a typical response threshold of 1A (range 0.7 to 1.3A), and supports wire breakage recognition function.

The typical limit value for inductive shutdown voltage is L+(-50V), and the maximum on/off capacity of the output terminal is 0.5A under resistive load and 5W under lighting load. The lower limit of the load resistance range is 48 Ω and the upper limit is 12k Ω. The rated output current for signal "1" is 0.5A, and the maximum residual current for signal "0" is 0.1mA.

Communication and configuration:

Support configuration and configuration through STEP 7 TIA Portal (since version V14), STEP 7 (since version V5.5 SP3), and PCS 7 (since version V8.1 SP1).

Compatible with PROFIBUS and PROFINET communication protocols, supporting GSD version/GSD revised version and above for easy integration into different industrial automation networks.

Address and code:

The maximum address space for each module is 2 bytes, plus 2 bytes for QI information.

Equipped with automatic encoding and mechanical encoding key functions, the mechanical encoding key type is A-type, supporting seamless adaptation with A0 type base units to ensure the accuracy and reliability of electrical connections.

Environmental adaptability:

The working temperature range is -20 ° C to+60 ° C, which can adapt to a wide temperature range.

The protection level is IP20, suitable for dust-free and low humidity industrial control environments.

Mechanical structure and installation:

The module design is compact and supports multiple wire connection methods, including one wire, two wire, three wire, and four wire connections. It needs to be used in conjunction with A0 type base units and potential distribution modules.

The color code of the module color label board is CC00, which is easy to identify and manage.
