SIEMENS 6ES7131-6BF61-0AA0 New and Original High quality

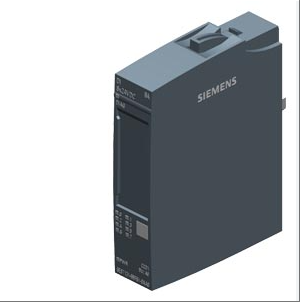

6ES7131-6BF61-0AA0

The 6ES7131-6BF61-0AA0 model product is a digital input module for Siemens S7-1200 series PLC, designed specifically for industrial automation scenarios. It has 16 channel 24V DC digital signal acquisition capability, adopts a source input (NPN) structure, supports IEC 61131 standard, and input delay time can be parameterized (0.05ms to 20ms). It is compatible with S7-1200 series controllers and adapts to multiple backplane units (BU type A0) through ET 200SP interface. Its compact design integrates short-circuit protection and reverse polarity protection functions, and can operate stably in a wide temperature range of -20 ℃ to+60 ℃ and complex electromagnetic environments. It is suitable for production line monitoring and equipment status in manufacturing, logistics automation, energy management and other fields. Detection and data collection tasks, implemented through STEP 7 TIA Portal or V5.5 SP3 and above software for engineering configuration, supporting PROFINET/PROFIBUS The communication protocol, modular structure that is easy to expand and has high anti-interference performance, is the core component for building distributed industrial control systems.

Technical specifcations for 6ES7131-6BF61-0AA0

Basic information

Brand and model: SIEMENS 6ES7131-6BF61-0AA0

Product type: Digital input module, belonging to the ET 200SP distributed I/O system component of S7-1200 series PLC.

Design standard: Complies with IEC 61131 standard to ensure high compatibility and safety.

2、 Electrical parameters

Input signal type: digital signal, supporting 24V DC voltage input.

Number of input channels: 16 channels, capable of simultaneously collecting multiple signals, improving system flexibility.

Input delay time: can be parameterized and configured, ranging from 0.05ms to 20ms, to adapt to different response speed requirements.

Rated input voltage: 24V DC, allowing input range of 19.2V to 28.8V, compatible with multiple power environments.

Input current: The typical value for signal "1" is 6mA to ensure stable signal acquisition.

3、 Interface and Installation

Interface form: Modular structure, compatible with BU type A0 base unit, supporting single wire or multi wire connections.

Installation method: Modular installation, convenient for rapid deployment and maintenance on site.

Dimensions: Approximately 12.80mm x 15.30mm x 5.20mm, compact design saves space.

Weight: Approximately 4.72kg to 4.85kg (with slight differences in data from different sources), convenient for handling and integration.

4、 Functional characteristics

Input type: Source input (NPN), compatible with multiple sensors and actuators.

Diagnostic function: Supports module diagnostic functions such as power supply voltage monitoring to enhance system reliability.

Hot plug support: The module supports hot plug, reducing maintenance costs and downtime.

Protection feature: It has reverse polarity protection function to prevent module damage caused by misconnection.

5、 Environmental adaptability

Working temperature range: -20 ℃ to+60 ℃, suitable for extreme industrial environments.

Protection level: IP20, suitable for industrial sites without conductive dust.

6、 Communication and compatibility

Communication protocol: Supports industrial Ethernet protocols such as PROFINET and PROFIBUS to achieve efficient data transmission.

Software compatibility: Engineering configuration can be performed through STEP 7 TIA Portal (V14 and above) or STEP 7 (V5.5 SP3 and above) to simplify the development process.

System compatibility: Seamless integration with S7-1200 series controllers, reducing the difficulty of system integration.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
