SIEMENS 6ES7131-6BF01-0AA0 New and Original High quality

6ES7131-6BF01-0AA0

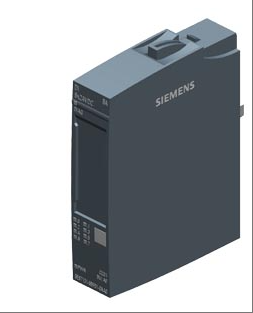

The 6ES7131-6BF01-0AA0 model product is a SIMATIC ET 200SP series digital input module, which is a key component in Siemens distributed I/O systems. This module is equipped with 8-channel 24V DC digital input, supports PNP type (source type) signal access, complies with IEC 61131 standard, and has adjustable input delay function from 0.05ms to 20ms, suitable for high-speed signal acquisition scenarios. It has a protection level of IP20 and is compatible with ET 200SP basic units (such as BU type A0). It can be easily installed through direct insertion terminals. The module comes with a power supply voltage diagnostic function, which can monitor the power supply status in real time. The product adopts a compact design with a weight of only 0.035kg and a packaging size of 6.8cm × 7.8cm × 2.4cm, which complies with the RoHS environmental directive requirements. It supports efficient collaboration with controllers such as S7-1200/S7-1500 through PROFINET network and is widely used in automation production lines in industries such as automobile manufacturing, packaging machinery, logistics and warehousing. It can stably process switch signal input tasks and provide reliable data acquisition support for industrial control systems.

Technical specifcations for 6ES7131-6BF01-0AA0

Model: 6ES7131-6BF01-0AA0

Type: Digital Input Module

Functional positioning: Suitable for distributed I/O systems, supporting 8-channel 24V DC digital input

Electrical parameters

Input type: PNP type (source type) digital input

Input voltage range: 19.2V DC to 28.8V DC

Input current: 70mA (typical value)

Number of input channels: 8 channels

Input delay time: adjustable range from 0.05ms to 20ms, suitable for high-speed signal acquisition needs

Protection level: IP20 (used in cabinets that meet the protection level)

Physical parameters

Size: The module width is compatible with the ET 200SP base unit (such as BU type A0), and the specific size needs to be combined with the installation base

Weight: Approximately 0.035kg (net weight of module)

Packaging size: 6.8cm × 7.8cm × 2.4cm (single piece packaging)

Color code: CC01 (identifying module type)

function characteristics

Diagnostic function: supports power voltage diagnosis and real-time monitoring of power supply status

Industrial applicability: Designed to be robust, suitable for industrial environments, compatible with ET 200SP system architecture

Installation method: Supports direct insertion terminal connection, compatible with ET 200SP base unit (such as A0 type)

Protocol support: Compliant with IEC 61131 standard and compatible with PROFINET communication protocol

Environmental adaptability

Working temperature range:- 30 ° C to+60 ° C (SIPLUS extreme and other variants are required for extreme environments)

Storage temperature range: not explicitly mentioned, but usually meets industrial module standards (-40 ° C to+85 ° C)

Humidity requirement: The relative humidity of the air should be less than 85% (without condensation)

Anti interference capability: equipped with industrial grade anti electromagnetic interference performance, suitable for harsh industrial environments

Compatibility and Scalability

Controller compatibility: Supports collaboration with S7-1200, S7-1500 and other controllers through PROFINET network

System Expansion: Expandable to ET 200SP distributed I/O system, supporting multiple module combinations

Redundancy support: The redundancy function is not explicitly mentioned, but the ET 200SP system supports redundancy configuration

Certification and Compliance

RoHS Compliance: Compliant with RoHS Environmental Directive requirements

Safety certification: compliant with IEC 61131 standard, suitable for industrial automation scenarios
