6EP1332-4BA00

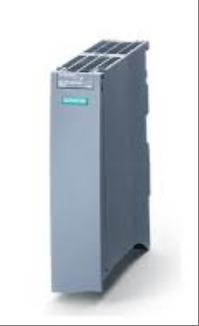

The 6EP1332-4BA00 model product is a Siemens SIMATIC PM 1507 series single-phase load power module designed specifically for SIMATIC S7-1500 PLC systems. It has 24V DC/3A output capability, supports automatic range switching of input voltage (120/230V AC), integrates polarity reversal protection, short-term power buffering function, and output overvoltage protection. It adopts a compact design (width 50mm x height 147mm x depth 129mm) and can be directly fixed to the S7-1500 installation rail. It displays the running, fault, and standby status in real time through LED indicator lights. It is suitable for application environments with strict requirements for power module reliability, safety, and installation convenience in industrial automation scenarios.
Technical specifcations for 6EP1332-4BA00
Rated input voltage: AC 120/230 V, supports 50/60 Hz power frequency, with automatic voltage range switching function. The input voltage range is 85 VAC to 132 VAC (at 120 VAC) or 170 VAC to 264 VAC (at 230 VAC).
Rated output voltage: DC 24 V, output voltage accuracy of static ± 1%, grid regulation capacity of about 0.1%, load regulation capacity of about 0.1%, and maximum residual ripple double peak value of 50 mV.
Rated output current: 3 A, output current range is 0 to 3 A, typical effective output power is 72 W.
Overload capacity: Supports instantaneous overload current of 12 A (short circuit during startup and operation), with an overload duration of 70 ms.
Power efficiency: Under rated input voltage and rated output current conditions, the efficiency is about 87% and the power consumption is about 11 W.
Protection function:
Output overvoltage protection: The additional control circuit limits the voltage to below 28.8 V.
Short circuit protection: using electronic locking technology, supporting automatic restart.
Current limit: The typical value is 3.4 A, with a limit range of 3.15 A to 3.6 A.
Isolation characteristics: There is potential isolation between input and output, which meets the SELV output voltage requirements of EN 60950-1, EN 50178, and EN 61131-2 standards.
Protection level: IP20, suitable for non explosion proof areas.
Certification and Standards: Passed certifications such as CE, cULus (UL 508, CSA C22.2 No. 142), FM, ATEX, cULus Class I Div 2, IECEx, GL, ABS, BV, DNV, etc., in compliance with RoHS environmental standards.
Mechanical parameters:
Dimensions: Width 50 mm, height 147 mm, depth 129 mm.
Weight: Approximately 0.45 kg.
Environmental adaptability:
Working temperature range: 0 ° C to 60 ° C (natural convection).
Storage temperature range: -40 ° C to+85 ° C.
Humidity level: Complies with EN 60721 climate type 3K3, with a relative humidity of 5% to 95% (non condensing).
Installation method: It can be directly fixed to the S7-1500 mounting rail and supports horizontal or vertical installation.
Display and indication:
Running status: Green LED indicator light.
Fault status: Red LED indicator light.
Standby mode: Yellow LED indicator light.
Parallel capability: Supports parallel connection of two load power sources to enhance performance.
Power buffering function: provides short-term power buffering, outputs 24 VDC voltage, with a maximum limit of 28 VDC, to prevent overvoltage damage to the 24 V load; It can provide 50% additional power for 5 seconds per minute, suitable for short-term overload scenarios when switching 24V electrical equipment.
