Schneider BMXP341000 variable speed drive ATV320

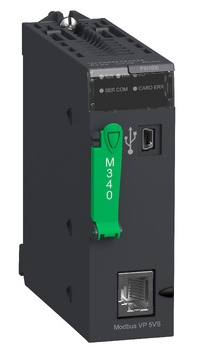

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 2 rack configuration, 20 application specific channels and 11 slots. It is a module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 2 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 512 multi-rack configuration discrete I/O processor capacity and 128 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications.This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions.
Technical specifcations for BMXP341000
Product or Component Type ： Processor module
Number of racks ： 2
Number of slots ： 11
Discrete I/O processor capacity ： 512 I/O single-rack configuration
Analogue I/O processor capacity ： 66 I/O single-rack configuration 128 I/O multi-rack configuration
Number of application specific channel ： 20
Monitoring ： Diagnostic counters Modbus Event counters Modbus
ambient air temperature for operation ： 32…140 °F (0…60 °C)
Relative Humidity ： 10…95 % without condensation
IP Degree of Protection ： IP20
Protective treatment ： TC
Directives ： 2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
Category ： US1PC3418160
Discount Schedule ： PC34
Returnability ： Yes
Country of origin ： FR
Packing Units
Unit Type of Package 1 ： PCE
Number of Units in Package 1 ： 1
Package 1 Height ： 2.17 in (5.500 cm)
Package 1 Width ： 4.33 in (11.000 cm)
Package 1 Length ： 4.72 in (12.000 cm)
Package 1 Weight ： 8.360 oz (237.000 g)
Unit Type of Package 2 ： S02
Number of Units in Package 2 ： 15
Package 2 Height ： 5.91 in (15.000 cm)
Package 2 Width ： 11.81 in (30.000 cm)
Package 2 Length ： 15.75 in (40.000 cm)
Package 2 Weight ： 8.598 lb(US) (3.900 kg)
