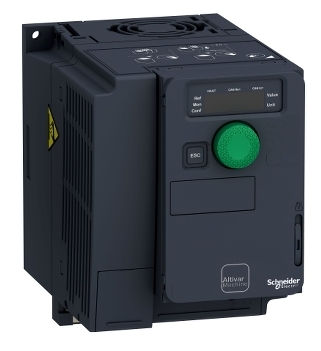

Schneider ATV320U07N4C variable speed drive ATV320
This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors.
Technical specifcations for ATV320U07N4C
Weight (kg) ： 1.200000
Voltage (volt AC) ：380...500 V - 15...10 %
Rated Short Circuit Capacity - KA ： 5 kA
Model Number ： ATV320U07N4C
Product Certification ： CE
Mercury Free ： Yes
Ambient Air Temperature for Operation ：-10…50 °C without derating
EU RoHS Directive ： Pro-active compliance (Product out of EU RoHS legal scope)
net weight ： 1.2 kg
RoHS Exemption Information ： Yes
Motor Power (kW) ： 0.75 kW for heavy duty
range of product ： Altivar Machine ATV320
product or component type ： Variable speed drive
product specific application ：Complex machines
[Us] rated supply voltage ： 380...500 V - 15...10 %
EMC filter ： Class C2 EMC filter integrated
line current ：3.6 A at 380 V (heavy duty)
nominal switching frequency ： 4 kHz
switching frequency ： 2...16 kHz adjustable
analogue input number ：3
analogue output number ： 1
braking to standstill ：By DC injection
operating position ：Vertical +/- 10 degree
pollution degree ： 2
Our Services:
1、All our products are new and original, and of good quality
2、Our prices are very competitive.3.We have a large quantity in stock, so we could help the customers to get the components which are dificult to getAll inquiries will be valued and wil reply in 24 hours.
5.Fast shipping, and good after-sale service
6We will ship the items within 1-3 working days after the payment is received
7、Good package to protect the products.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A. lt usually takes one to three days if we have it in stock. lf the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? ls it free or do you charge extra?
A: lt depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. lf the quantity is large, we can negotiate.
