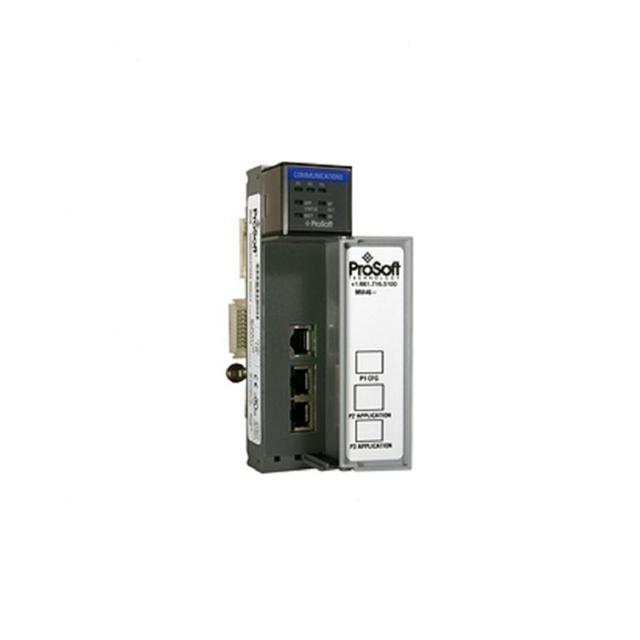

PROSOFT MVI69-DFNT CompactLogix or MicroLogix Platform EtherNet/IP Client/Server Communication Module

The MVI69-DFNT module requires the following minimum hardware and software

components:

 Rockwell Automation CompactLogix processors or MicroLogix 1500 LRP

processor, with compatible power supply and one free slot in the rack, for the

MVI69-DFNT module. The module requires 800 mA of available power.

Important: The MVI69-DFNT module has a power supply distance rating of 2 (L43 and L45

installations on first 2 slots of 1769 bus).

Important: For 1769-L23x processors, please make note of the following limitations.

 1769-L23-QBFC1B = 800 mA at 5 Vdc (One MVI69-DFNT will use all 800 mA of available

power. No other modules can be used with an MVI69 module connected to this processor.)

 1769-L23E-QB1B = 1000 mA at 5 Vdc (One MVI69-DFNT will use 800 mA of available power.

One other module can be used on this rack provided it consumes less than 200 mA at 5 Vdc.)

 1769-L23E-QBFC1B = 450 mA at 5 Vdc (No MVI69 module can be used with this processor.)

 Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500

(MicroLogix) programming software

 Rockwell Automation RSLinx communication software

 Pentium®

II 450 MHz minimum. Pentium III 733 MHz (or better)

recommended

Supported operating systems:

o Microsoft Windows XP Professional with Service Pack 1 or 2

o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3

o Microsoft Windows Server 2003

 128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

 100 Mbytes of free hard disk space (or more based on application

requirements)

 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color

1024  768 recommended)

 DVD drive

 HyperTerminal or other terminal emulator program capable of file transfers

using Ymodem protocol.

Align the module using the upper and lower tongue-and-groove slots with the

adjacent module and slide forward in the direction of the arrow.

Move the module back along the tongue-and-groove slots until the bus

connectors on the MVI69 module and the adjacent module line up with each

other.

Push the module’s bus lever back slightly to clear the positioning tab and

move it firmly to the left until it clicks. Ensure that it is locked firmly in place.

Close all DIN-rail latches.
