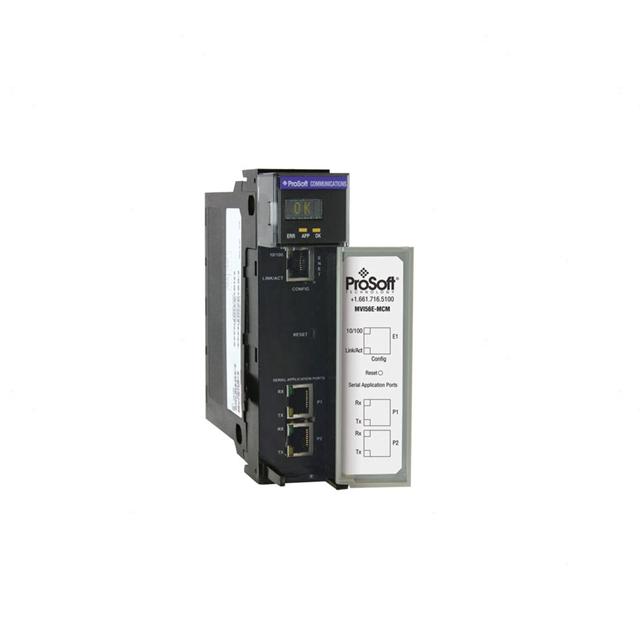

PROSOFT MVI56E-MCMR ControlLogix Platform Modbus Communication Module with Reduced Data Block

The MVI56E-MCMR Enhanced Modbus Master/Slave Communication Module with Reduced Data Block allows Rockwell Automation® ControlLogix® processors to easily interface with devices using the Modbus RTU/ASCII serial communications protocol. Compatible devices include a wide variety of instruments, process measurement devices, popular brands of programmable logic controllers (PLCs) and programmable automation controllers (PACs).

The MVI56E-MCMR acts as an input/output module on the ControlLogix backplane, making Modbus data appear as I/O data to the processor. Backplane data transfers to and from the processor are asynchronous from communications on the Modbus network. Two independently-configurable serial ports can operate on the same or different Modbus networks. Each port can be configured as a Modbus Master or Slave, sharing the same user-controlled 5000-word database.

The MVI56E-MCMR utilizes a reduced Input/Output (I/O) data block for transferring data to and from a ControlLogix processor. This reduced data block makes it ideal for use in remote rack applications over ControlNetTM. For EtherNet/IPTM applications where bandwidth is not an issue, it is strongly recommended to use the MVI56EMCM.

Align the module using the upper and lower tongue-and-groove slots with the

adjacent module and slide forward in the direction of the arrow.

Move the module back along the tongue-and-groove slots until the bus

connectors on the MVI69 module and the adjacent module line up with each

other.

Push the module’s bus lever back slightly to clear the positioning tab and

move it firmly to the left until it clicks. Ensure that it is locked firmly in place.

Close all DIN-rail latches.
