Omron S8VS-12024 New and Original High quality

S8VS-12024

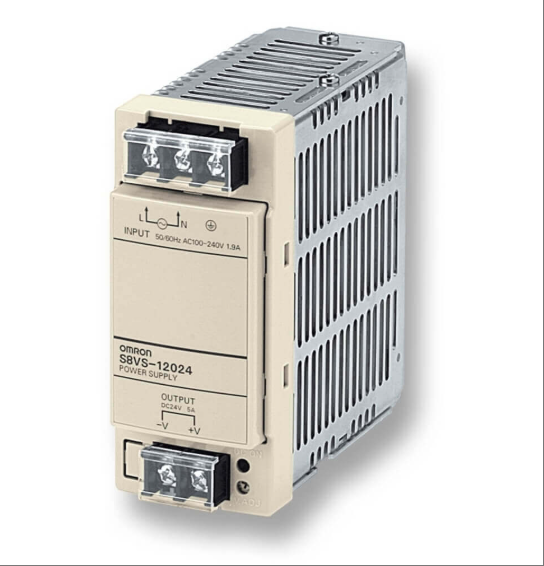

The S8VS-12024 model product is a highly reliable DIN rail mounted AC/DC switching power supply, designed with single-phase AC input and supporting a wide voltage range of 85V to 264V (compatible with frequencies from 47Hz to 440Hz). It can output stable DC power of 24VDC/5A, with a rated power of 120W and a typical conversion efficiency of 80%. The product is equipped with a 3-digit 7-segment LED status display, which can provide real-time feedback on the operating status. It also integrates overcurrent protection (105% -180% rated current automatic reset) and overvoltage protection (115% rated voltage power-off reset) functions, ensuring stable operation within a wide temperature range of -10 ℃ to 60 ℃ (with derating required). Its compact design (50 × 121.3 × 115mm) is suitable for standard industrial control cabinets and complies with international safety standards such as UL508/60950-1, CSA C22.2 No.107.1, EN50178, etc. It is widely used in industrial automation equipment, mechanical equipment and other scenarios that require high-precision power supply.

Technical specifcations for S8VS-12024

Output power and voltage current: This model is a single output switching power supply with an output power of 120W, an output voltage of 24VDC, a maximum output current of 5A, and can stably drive 24V DC load equipment.

Input voltage range: Supports single-phase AC input, with a voltage range of AC100V to 240V (allowable range AC85V to 264V), compatible with global common grid voltages, and also supports DC80V to 370V wide DC input, meeting the needs of special application scenarios.

Protection function: It has overcurrent protection (OCP) and overvoltage protection (OVP) functions. The overcurrent protection trigger point is 105% -180% of the rated current and supports automatic reset. The overvoltage protection automatically shuts down and resets when the output voltage reaches 115% of the rated value, providing dual protection for equipment safety.

Environmental adaptability: The working temperature range is -10 ° C to 60 ° C (requires derating), the storage temperature range is extended to -40 ° C to 85 ° C, and the relative humidity tolerance range is 25% -95% (no condensation), meeting the complex environmental requirements of industrial sites.

Physical characteristics: Adopting standard DIN rail installation method, the body size is 121.3mm (length) × 50mm (width) × 115mm (height), and the weight is controlled within the range of 250g-400g. The compact design is suitable for small spaces in control cabinets.

Electrical safety: The insulation voltage reaches 3kV, meeting the safety isolation requirements of industrial equipment; Compliant with international safety standards such as UL508/60950-1, CSA C22.2 No.107.1, EN50178, EN60950-1, etc., the product has a complete safety certification system.

Efficiency and Characteristics: The typical conversion efficiency reaches 80%, supporting output voltage fine-tuning function (V.ADJ), adopting a universal input design to adapt to different power grid standards, and the built-in EMI filtering circuit effectively suppresses electromagnetic interference.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
