Omron S8VK-G06024 New and Original High quality

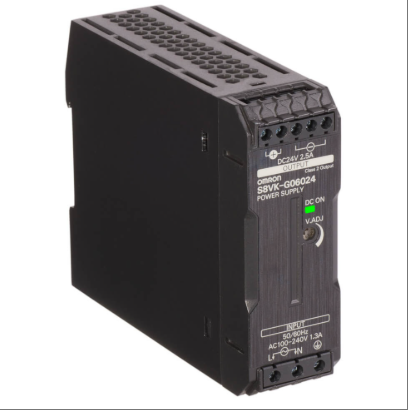

S8VK-G06024

The S8VK-G06024 model product is a 60W, 24VDC, 2.5A output AC/DC DIN rail switch power supply. It adopts a compact design, supports 100-240VAC or 90-350VDC wide range input, has a 120% power boost function, and can operate stably in a wide temperature range of -40 to 70 ℃. It complies with international safety standards such as UL508/60950-1 and CSA C22.2 No.107.1. Its DIN rail installation method is easy to deploy quickly, with an output voltage accuracy of ± 1% and extremely low ripple noise. It is suitable for industrial automation, mechanical equipment and other scenarios that require high reliability power supply. The product combines miniaturization and high performance characteristics, and can adapt to complex electromagnetic environments and work stably for a long time.

Technical specifcations for S8VK-G06024

Input specifications:

Input voltage range: Supports single-phase AC 85V to 264V (wide range input), as well as DC 90V to 350V input, which can adapt to different voltage environments.

Input frequency: Supports 50/60Hz (compatible with the frequency range of 47Hz to 450Hz), compatible with most global power grid standards.

Voltage adjustable range: supports ± 10% adjustment of output voltage (V.ADJ function), and can flexibly adapt to load requirements.

Output specifications:

Output power: rated at 60W, maximum output current of 2.5A, meeting the stable power supply requirements of industrial equipment.

Output voltage: Fixed 24VDC output, extremely low ripple noise, voltage accuracy ± 1%, ensuring stable operation of the equipment.

Number of output terminals: Single output design simplifies the wiring process and improves system integration efficiency.

Protection function:

Overcurrent protection: Built in automatic reset protection mechanism, which automatically cuts off the output when the current exceeds the rated value to prevent equipment damage.

Overvoltage protection: When the output voltage exceeds 115% of the rated value, the circuit breaker protection (power-off reset) is triggered to ensure system safety.

Environmental adaptability:

Working temperature range: Supports wide temperature range operation from -20 ℃ to+60 ℃ (derating curve needs to refer to the sample), suitable for complex industrial environments.

Temperature variation impact: Output voltage temperature coefficient ≤ 0.03%/℃, ensuring output stability in high or low temperature environments.

Static load variation: When the load changes, the output voltage fluctuation is ≤ 1.0%, ensuring the quality of dynamic load power supply.

Static input variation: When the input voltage fluctuates, the output voltage fluctuation is ≤ 0.5%, which improves the adaptability of the power grid to fluctuations.

Installation and Certification:

Installation method: DIN rail installation, compatible with standard industrial control cabinets, saves space and is easy to maintain.

Security certification: Passed UL508/60950-1、CSA C22.2 No.107.1、EN50178（VDE0160）、EN60950-1（VDE0805） Certified according to international safety standards and compliant with industrial equipment compliance requirements.

Physical specifications:

Dimensions: 110mm long, 32mm wide, 90mm high, compact design suitable for limited installation space.

Weight: Approximately 0.2949 kilograms, lightweight design reduces transportation and installation costs.
