Omron NX-SID800 New and Original High quality

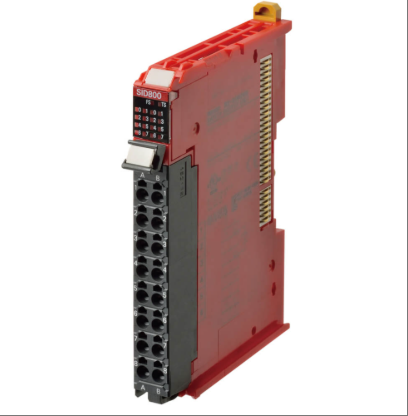

NX-SID800

The NX-SID800 model is a safety input unit designed specifically for industrial automation scenarios. It has 8 digital input channels (PNP type, input voltage range 20.4V-28.8V DC) and 2 test output points. It is installed on a DIN rail and supports push in connectors to ensure stable and reliable signal transmission. This product meets the IP20 protection level and has passed multiple international safety certifications such as CE, C-Tick, cULus, KC, TUV, UL, etc. It also complies with safety standards such as EN ISO 13849-1/2 and IEC 61508, and can build a safety control system that meets SIL3 safety integrity level and PLe performance level. Its compact design (104.5mm × 12mm × 80.1mm, weight 90g) is suitable for small spaces in control cabinets, supports free operation signal processing mode, and can quickly and accurately process input signals. It is widely used in automotive manufacturing (robot control, conveyor line start stop, safety door monitoring), electronic equipment manufacturing (automatic plug-in machine, surface mount machine protection), logistics warehousing (automatic sorting system, stacker crane misoperation prevention) and other fields that require high reliability safety monitoring to ensure the safety of personnel and equipment.

Technical specifcations for NX-SID800

Input channel and type:

Number of digital input channels: 8

Input type: PNP type

Input voltage range: 20.4V to 28.8V DC

Safe input current: Typical value is 3.0mA

Safe input ON voltage: 15V DC or above

Safe input OFF voltage/current: below 5V DC/below 1mA

Output and power characteristics:

Test output points: 2

Test output rated current: below 50mA

Test output leakage current: below 0.1mA

Test output ON residual voltage: below 1.2V

I/O power consumption current: below 20mA

Insulation method: optocoupler insulation

Physical specifications and installation:

Product dimensions: height 104.5mm, width 12mm, depth 80.1mm

Weight: Approximately 90g (some data shows 69.85g, possibly due to packaging or configuration differences)

Installation method: DIN rail installation

Connection method: push in connector

Environmental adaptability:

Working temperature range: 0 ° C to 55 ° C

Protection level: IP20

Relative humidity range: 10% to 90% RH (no condensation)

Safety standards and certifications:

Compliant with standards: EN ISO 13849-1, EN ISO 13849-2, IEC 61508 parts 1-7, etc

Security integrity level: SIL3

Performance level: PLe

Certification bodies: CE, C-Tick, cULus, KC, TUV, UL, etc

Signal processing and characteristics:

Signal processing mode: supports free running signal processing, which can quickly and accurately process input signals

Input response time: The typical value is in the millisecond range (specific values may vary depending on the application)
