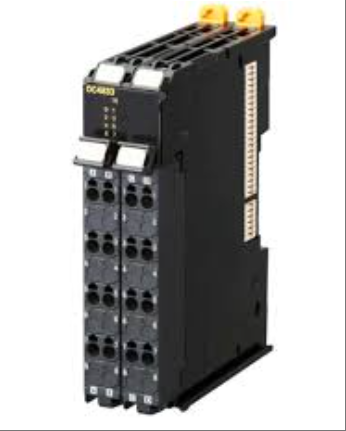

Omron NX-OC4633 9 New and Original High quality

NX-OC4633    9

The NX-OC4633 model product is a high-performance digital output module designed specifically for the industrial automation field. It is an I/O expansion component of the NX series PLC and adopts a modular structure design. It supports 8-point relay output (output type is normally open contact, 2D/3D wiring form) and has a load driving capability of 2A/point. It is compatible with 24VDC/250VAC output voltage and is suitable for directly controlling industrial loads such as solenoid valves, contactors, indicator lights, etc; The module communicates with the CPU unit at high speed through the NX bus, with synchronous refresh time lower than the typical value. It supports free running refresh mode to ensure the real-time and stability of control signals; Its protection level reaches IP20, using standard DIN rail installation method, compact structure (matched with NX series basic units in width), and can operate stably in the range of 0 ℃ to 55 ℃ ambient temperature and 10% to 90% RH humidity. It meets international safety standards such as UL508 and EN 61131-2, and is widely used in industrial scenarios such as automobile manufacturing, packaging machinery, logistics sorting, etc. that require high reliability discrete output. As a key execution unit, it improves system response speed and anti-interference ability.

Technical specifcations for NX-OC4633    9

Output type: 8-point relay output, relay type is normally open contact (N.O.), supports 2D/3D wiring form.

Load capacity: The output current at each point is 2A, and the total load current of the module is 16A (8 points x 2A).

Output voltage: compatible with 24VDC and 250VAC, suitable for DC and AC load devices.

Response time: The typical value of relay action time is less than 10ms, ensuring fast response of control signals.

Refresh mode: Supports synchronous I/O refresh and free running refresh modes, and users can flexibly configure according to system requirements.

Mechanical and installation parameters

Dimensions: The module dimensions are 190mm (width) x 110mm (height) x 53.5mm (depth), with a compact structure that saves cabinet space.

Installation method: Supports DIN rail installation and is compatible with standard industrial control cabinet layouts.

Terminal type: Using screw terminal block to ensure stable signal connection, suitable for vibration environment.

Weight: Approximately 2kg, easy to install and maintain.

Environmental adaptability

Working temperature: 0 ℃ to 55 ℃, capable of stable operation in high-temperature industrial environments.

Storage temperature: -25 ℃ to 70 ℃, suitable for device storage needs in extreme environments.

Humidity range: 10% to 90% RH (no condensation or freezing), suitable for humid industrial environments.

Altitude adaptation: It can be used in environments below an altitude of 2000m to ensure equipment stability in high-altitude areas.

Protection level: up to IP20, effectively preventing dust and foreign objects from entering the interior of the module.

Electromagnetic compatibility and certification

Electromagnetic compatibility: Compliant with electromagnetic compatibility standards such as IEC61000-4-4, effectively resisting electromagnetic interference.

Safety certification: Through international safety certifications such as UL508 and EN 61131-2, ensure the safety of equipment in industrial environments.

Anti interference capability: Resistant to power line interference of 2kV (compliant with IEC61000-4-4 standard), ensuring the accuracy of signal output.

Functionality and Scalability

Communication interface: Supports EtherCAT bus communication, with communication cycles synchronized with control program cycles to ensure real-time system performance.

Scalability: It can be flexibly combined with other I/O units in the NX series to meet the expansion needs of complex control systems.

Diagnostic function: Built in input disconnection detection function, which can monitor the output signal status in real time and improve system reliability.

Compatibility: Fully compatible with machine automation controllers such as NJ501/301, suitable for applications with few or no axes.
