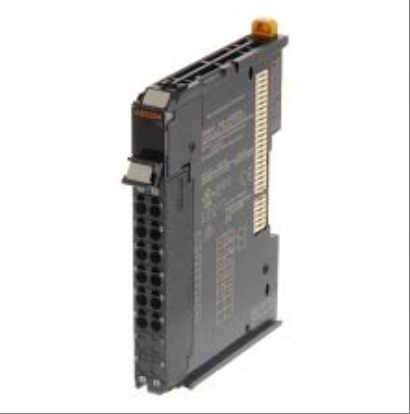

Omron NX-AD3204  2 New and Original High quality

NX-AD3204   2

The NX-AD3204 model product is a high-performance analog input unit designed specifically for the industrial automation field. It supports 4-channel current input (4-20mA signal) and uses differential input to enhance anti-interference ability. Its resolution reaches 1/8000 and it can accurately collect sensor data; The module supports free running or synchronous I/O refresh mode, with a conversion time as low as 250 μ s/channel, suitable for high-speed synchronous measurement scenarios; Its compact design (12mm wide) can save cabinet space, communicate with CPU units at high speed through NX bus, and be compatible with EtherCAT connectors for distributed control; The module supports screw free push in terminals, significantly reducing wiring workload, and is equipped with input wire breakage detection function; Compliant with international safety standards such as UL508, ANSI/ISA 12.12.01, EN 61131-2, etc., it can operate stably in an environment temperature of 0-55 ℃, humidity of 10% -95% (no condensation), and altitude below 2000m. It is suitable for high-precision control scenarios such as semiconductor manufacturing and packaging machinery.

Technical specifcations for NX-AD3204   2

Basic electrical parameters

Input specifications: 4-channel current input, supports 4-20mA signal, adopts differential input method, effectively suppresses noise interference.

Resolution: up to 1/8000, capable of accurately collecting sensor data and meeting high-precision control requirements.

Conversion time: The conversion time for each channel is as low as 250 μ s, suitable for high-speed synchronous measurement scenarios.

Refresh mode: Supports free running refresh or synchronous I/O refresh mode, and users can flexibly configure according to system requirements.

2、 Mechanical and installation parameters

Dimensions: The width is only 12mm, and the height and depth are adapted according to the specific model, which can save cabinet space.

Installation method: Supports modular installation and can be flexibly combined with other I/O units in the NX series.

Terminal type: Adopting screw free push in terminal blocks, significantly reducing wiring workload and improving debugging and maintenance efficiency.

3、 Environmental adaptability

Working temperature: It can operate stably in an ambient temperature range of 0 ℃ to 55 ℃.

Storage temperature: The storage temperature range is -25 ℃ to 70 ℃ (without condensation or freezing).

Humidity range: The operating environment has a humidity of 10% to 95% (no condensation or freezing), suitable for humid industrial environments.

Altitude adaptation: It can be used in environments below an altitude of 2000m to ensure the stability of the equipment in high-altitude areas.

4、 Protection and diagnostic functions

Input wire breakage detection: Equipped with input wire breakage detection function, it can monitor the status of input signals in real time and improve system reliability.

Overvoltage protection: Built in overvoltage protection mechanism to prevent equipment damage caused by abnormal voltage.

5、 Electromagnetic compatibility and certification

Electromagnetic compatibility: Compliant with electromagnetic compatibility standards such as IEC61000-4-4, effectively resisting electromagnetic interference.

Safety certification: Through international safety certifications such as UL508, ANSI/ISA 12.12.01, EN 61131-2, etc., ensure the safety of equipment in industrial environments.
