Omron NS8-TV01B-V2 New and Original High quality

NS8-TV01B-V2

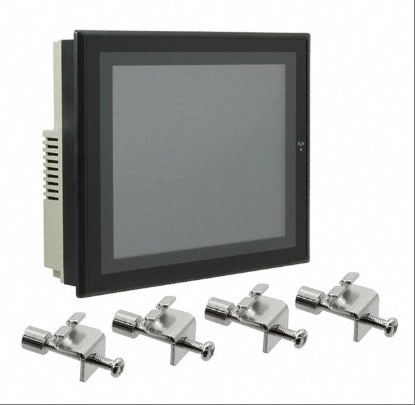

The NS8-TV01B-V2 model product is an 8.4-inch color TFT touch screen human-machine interface (HMI), designed with a black shell, featuring a high brightness LED backlit display screen, supporting 65536 true color displays, with a resolution of 640 × 480 pixels, equipped with resistive touch screen technology, supporting glove operation and precise touch control in industrial environments; Its protection level reaches IP65 (dustproof and waterproof) and NEMA 4 standards, with a working temperature range of 0 ° C to 50 ° C (adjustable due to installation angle and expansion module), a humidity tolerance range of 35% to 85% (no condensation), compatible with DC24V ± 15% power supply, equipped with RS-232C serial communication interface and built-in Ethernet port, supporting Compact Flash memory card expansion, standard 40MB onboard memory and dual USB interface, capable of storing 160000 points of data and 5000 alarm records, supporting multilingual display (including Chinese) and ladder diagram on-site programming, suitable for real-time monitoring and interaction needs in complex industrial scenes.

Technical specifcations for NS8-TV01B-V2

Basic specifications

Brand and Series: OMRON NS Series Programmable Terminal Touchscreen.

Display size: 8.4-inch color TFT display screen, display type is TFT, backlight type is LED.

Shell color: Black.

Dimensions: 232 × 177 × 49mm.

2、 Display parameters

Resolution: 640 × 480 dots, providing clear and delicate display effects.

Display color: 65536 colors, meeting the rich color display needs in industrial scenes.

3、 Electrical parameters

Power supply voltage: DC24V, allowable voltage range is DC20.4-27.6V (i.e. DC24V ± 15%).

Power consumption: The power consumption mentioned by different sources may vary, but it is generally lower to meet the energy-saving needs of industrial sites.

4、 Environmental adaptability

Working temperature range: usually 0 ° C to 50 ° C, but may be adjusted due to installation angle and expansion module. For example, when there is no expansion device, the temperature is 0-45 ° C; when installing a video input unit or controller link interface unit, the temperature is 0-35 ° C; and when the installation angle is 30-90 ° in the horizontal direction, the temperature is 0-50 ° C.

Storage temperature range: -20 ° C to 60 ° C.

Working environment humidity: 35% to 85% (0-40 ° C), 35% to 60% (40-50 ° C) (no condensation).

Protection level: IP65 (dustproof, waterproof), compliant with NEMA 4 standard, suitable for harsh industrial environments.

5、 Interface and Communication

Communication interface: Supports RS-232C serial communication interface, and some models may be equipped with Ethernet ports that support Ethernet communication.

Memory card slot: Provides a Compact Flash slot that supports memory card expansion.

USB interface: Equipped with a USB interface for easy program download and data transfer.

6、 Functional characteristics

Touch screen input: adopts resistive touch screen technology, supports glove operation, and has high touch sensitivity.

Multi language support: Supports multiple language displays to enhance operational flexibility.

Data recording and alarm: Supports a large amount of data recording and alarm event recording, facilitating troubleshooting and data analysis.

FA integration toolkit: Comes standard with CX One toolkit, supports screen design software integration simulation, and achieves synchronous simulation of ladder program and screen data.

Ladder diagram monitor: It can monitor ladder diagram programs on site without the need for a desktop computer, and supports functions such as program status monitoring, address search, and I/O point monitoring.

SmartActiveParts (SAP library): Simplify the connection process of Omron PLC and its components, and improve equipment integration efficiency.

7、 Security and Certification

Grounding resistance: below 100 Ω to ensure electrical safety.

Anti interference: Complies with IEC61000-4-4 standard and can withstand transient interference of 2kV (power line).

Product certification: Certified to comply with UL 508, UL 1604, EMC directive, NK and LR standards, ensuring product safety and reliability.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
