Omron NS5-TQ10B-V2 New and Original High quality

NS5-TQ10B-V2

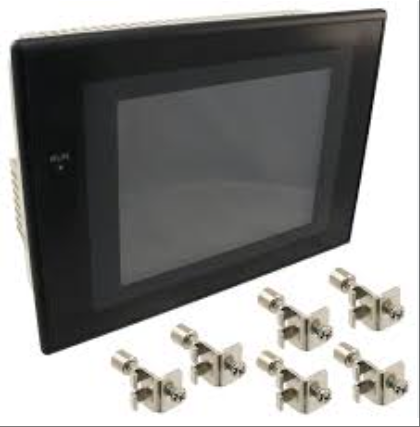

The NS5-TQ10B-V2 model product is a 5.7-inch color TFT touch screen human-machine interface (HMI) belonging to the NS series. It adopts a black shell design, integrates high brightness display and sensitive touch functions, and is suitable for human-machine interaction scenarios of small and medium-sized devices. Its core advantages include support for RS-232C serial communication and memory card expansion, compatibility with 24VDC DC power supply systems, compliance with IP65 protection level and NEMA 4 standards, stable operation in ambient temperatures ranging from 0 ° C to 50 ° C, and dust and water resistance. This product has passed international certifications such as UL and CSA, is compatible with Omron CX One development environment, and can quickly achieve seamless integration with controllers such as PLCs. It is a key component in the field of industrial automation that balances functionality and reliability.

Technical specifcations for NS5-TQ10B-V2

display performance

Screen size and type: Adopting a 5.7-inch color TFT LCD display screen, it can provide clear and high contrast visual effects, adapting to the complex lighting environment of industrial sites.

Resolution and viewing angle: The resolution is 320 × 240 pixels, with horizontal/vertical viewing angles of 80 ° and 60 ° respectively, ensuring that operators can accurately read data from multiple angles.

Brightness adjustment: Supports 3-level or 32 level brightness adjustment function, allowing users to flexibly adjust screen brightness according to ambient light intensity, improving operational comfort.

2、 Electrical characteristics

Power supply requirements: DC24V DC power supply is used, with a voltage range of 20.4V to 27.6V (± 15% tolerance), compatible with commonly used power supply standards for industrial automation systems.

Power consumption control: Typical power consumption is less than 15W, with low energy consumption characteristics, meeting the design requirements of energy-saving devices.

3、 Environmental adaptability

Working temperature and humidity: It can operate stably under conditions of 0 ° C to 50 ° C ambient temperature and 35% to 85% relative humidity (without condensation), and is suitable for high temperature and high humidity industrial scenarios.

Protection level: up to IP65 protection standard, with dustproof and waterproof capabilities, able to resist dust intrusion and low-pressure water jet, suitable for deployment in harsh environments.

Installation angle: Supports installation at a horizontal angle of 30 ° to 90 °, providing flexible equipment layout solutions.

4、 Mechanical structure

Exterior design: Adopting a compact body design, the panel opening size is 184mm × 131mm, with a depth of 49mm, supporting wall mounted installation and saving control cabinet space.

Weight parameter: The net weight of the equipment is about 850g, and the lightweight design is convenient for on-site installation and maintenance.

5、 Function Expansion

Storage Expansion: Equipped with a storage card interface, supports data recording and program backup functions, and can store historical operation data or system configuration files.

Language support: Built in 42 language display functions, meeting the localization operation needs of users from multiple countries, and supporting quick switching of interface languages.

6、 Security certification

Compliance standards: Certified to UL 508, UL 1604, EMC directive, NK, and LR standards to ensure equipment meets industrial safety and electromagnetic compatibility specifications.

Electromagnetic compatibility: The anti-interference performance meets the IEC 61000-4-4 standard and can withstand transient interference from 2kV power lines, ensuring stable operation in strong electromagnetic environments.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
