Omron NS5-SQ10B-V2 New and Original High quality

NS5-SQ10B-V2

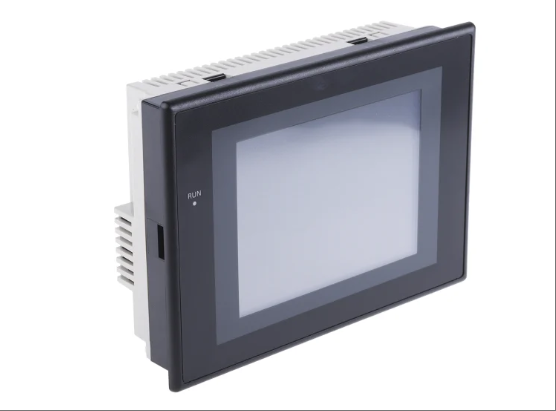

The NS5-SQ10B-V2 model product is a 5.7-inch color TFT touch screen human-machine interface (HMI) belonging to the Omron NS series. It features a black shell design and supports Ethernet free configuration to meet basic industrial automation needs. Its core function is to provide an intuitive visual operation interface for small and medium-sized devices, optimizing human-machine interaction experience through high brightness color display and sensitive touch technology, suitable for industrial scenarios such as mechanical manufacturing and production line monitoring that require real-time status feedback. The product has IP65 protection level (dustproof and waterproof) and NEMA 4 standard certification, and can operate stably in ambient temperatures ranging from 0 ° C to 50 ° C. It is compatible with 24VDC DC power supply systems, ensuring reliability and durability in complex industrial sites. As a key component of Omron's industrial automation solution, this model can seamlessly integrate with controllers such as PLCs to achieve efficient data exchange and equipment control.

Technical specifcations for NS5-SQ10B-V2

Display parameters

Display size: 5.7 inches

Display type: Color TFT LCD

Resolution: 320 × 240 pixels

Display color: 256 colors (also known as 65000 colors, may vary depending on product version or configuration)

Perspective: 80 ° left/right, 80 ° up, 60 ° down (some parameters may vary slightly due to product versions)

Backlight lifespan: over 375000 hours

Brightness adjustment: Supports 3 or 32 levels of brightness adjustment from the touchscreen screen

2、 Electrical parameters

Power supply voltage: DC20.4V to 27.6V (DC24V ± 15%)

Power consumption: below 15W (also known as 0-50W, may vary depending on product configuration or usage status)

3、 Interface parameters

Communication interface: RS-232C， Capable of serial, USB, or Ethernet communication (specific interface types may vary depending on product version or configuration)

Storage card interface: Supports storage card expansion (some versions may be equipped with it)

Number of USB interfaces: 0-2 (specific quantity may vary depending on product version or configuration)

4、 Environmental parameters

Working temperature range: 0 ℃ to 50 ℃

Storage temperature range: -20 ℃ to 60 ℃

Working humidity range: 35% to 85% (0 ℃ to 40 ℃), 35% to 60% (40 ℃ to 50 ℃), no condensation

Protection level: The front panel protection level is IP65 (also known as IP55, which may vary depending on the product version or configuration), with dust and water resistance capabilities

5、 Mechanical parameters

Dimensions: Front panel width 195mm, height 142mm, panel opening width 184mm, height 131mm, built-in depth 49mm (specific dimensions may vary depending on product version or configuration)

Weight: Approximately 850g to 220g (specific weight may vary depending on product version or configuration)

Installation method: Supports various methods such as wall mounted installation and handheld installation

6、 Functional characteristics

Alarm function: The product comes with a built-in display alarm function

Archiving function: supports data archiving and storage

Language support: Supports screen display in 42 languages, making it convenient for users from different regions and language backgrounds to use

Development Environment: Omron provides a development environment that does not require programming or graphic design, such as the FA integration toolkit "CX One", which simplifies the development process and improves work efficiency
