NS5-SQ00B-V2

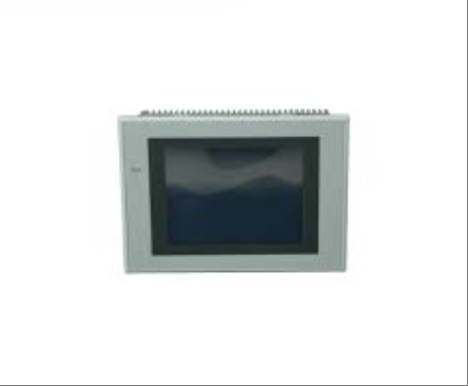

The NS5-SQ00B-V2 model product is a 5.7-inch color TFT touch screen human-machine interface (HMI), featuring a high brightness LED backlit display screen, supporting resistive touch operation, and industrial grade IP65 protection level. It can effectively resist dust and liquid intrusion, adapt to a wide temperature range of 0 ° C to 50 ° C and a humidity range of 35% -85%. This product is compatible with DC24V ± 15% DC power supply, comes standard with 60MB memory capacity, supports 256 color display and 320 × 240 resolution, and can achieve multi language interface switching (supporting 42 languages) and non programming screen design through CX One development environment. It also integrates FA integration toolkit and supports seamless connection with mainstream PLCs and Omron frequency converters, suitable for efficient human-machine interaction and monitoring needs of small and medium-sized automation equipment.
Technical specifcations for NS5-SQ00B-V2
Display parameters:
Screen size: 5.7-inch color TFT LCD display screen.
Resolution: 320 × 240 dots.
Display color: 256 colors.
Backlight type: LED backlight, ensuring clear display under various lighting conditions.
Electrical parameters:
Power supply voltage: DC24V ± 15%, which is 20.4V to 27.6V, compatible with common DC power supply systems in industrial sites.
Memory capacity: 60MB, meeting data storage requirements.
Interface and Communication:
Communication interface: Supports RS-232C serial communication interface, facilitating data exchange with other devices.
Network interface: Some models may be equipped with Ethernet interfaces to achieve high-speed data exchange.
Storage card interface: Supports storage card expansion for easy data recording and program backup.
Environmental adaptability:
Working temperature range: 0 ° C to 50 ° C, suitable for temperature changes in most industrial environments.
Protection level: The front panel has a protection level of IP65, with dustproof and waterproof capabilities, and can resist harsh environments such as oil stains and dust.
Humidity range: 35% to 85% (no condensation), suitable for different humidity environments.
Mechanical parameters:
Dimensions: The specific dimensions may vary slightly depending on the product version or configuration, but are generally designed to be compact and easy to integrate on the control cabinet or operation panel.
Installation method: Supports wall mounted installation, flexible installation angle, and easy operation.
Functional features:
Touch mode: Resistive touch screen, supporting glove operation, suitable for industrial site operation needs.
Multi language support: Supports 42 languages for display, making it convenient for users from different countries and regions to use.
Development Environment: Compatible with Omron CX One and other development environments, making it easy for users to write and debug programs.
Troubleshooting: Built in troubleshooting program SAP library, providing simple and easy to understand explanations and solutions for the causes of errors.
Certification and Standards:
Safety certification: Complies with international safety certification standards such as UL and CSA to ensure the safety and reliability of the product.
Environmental standards: Compliant with RoHS and other environmental directives, lead-free design, environmentally friendly and pollution-free.
