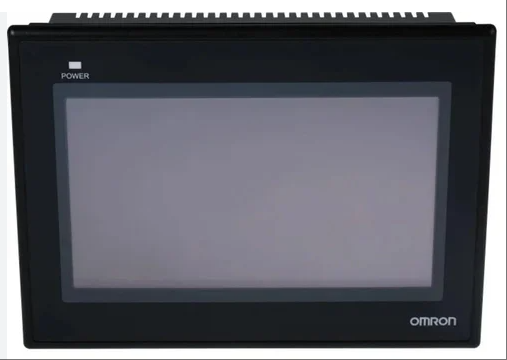

Omron NS15-TX01B-V2 New and Original High quality

NS15-TX01B-V2

The NS15-TX01B-V2 model product is a 15 inch color TFT touch screen human-machine interface (HMI), Adopting high brightness white LED backlight, supporting 16.77 million colors (24 bit full-color) display, with a resolution of 1024 × 768 pixels, equipped with five wire resistive touch screen technology, and industrial grade protection performance. The shell protection level is equivalent to IP65, which can adapt to a working temperature range of 0 ° C to 50 ° C and a humidity environment of 35% to 85%. It is compatible with DC24V ± 15% power supply, supports RS-422A/485 and Ethernet communication interface, comes standard with 2 Ethernet ports, built-in Compact Flash slot to expand storage capacity, integrates CX One toolkit to achieve synchronous simulation development of ladder program and image data, supports 42 image languages, 8 software languages, and 88 system information displays, and has instant alarm notification, data trend display, and SPMA single port multi device. Connection function, suitable for monitoring and data collection needs of equipment in industries such as packaging, food, plastic machines, textiles, etc.

Technical specifcations for NS15-TX01B-V2

display performance

Resolution and Color: Provides 1024 × 768 pixel resolution and 16.77 million colors (24 bit full-color) TFT display, supporting high-precision industrial image rendering.

Backlight system: using white LED backlight technology, with a service life of up to 50000 hours at room temperature and a timed shutdown function.

Display size: Equipped with a 15 inch widescreen display area to meet the visual interaction needs of complex industrial scenes.

2、 Electrical characteristics

Power configuration: Supports DC24V ± 15% DC power supply, compatible with AC100-240V/DC24V dual input mode (30W output).

Interface standard: Integrated RS-422A/485 communication interface, standard dual Ethernet ports, supports multi protocol data exchange.

3、 Environmental adaptability

Protection level: IP65 protection standard (equivalent to NEMA 4), can resist dust and low-pressure water jet.

Temperature and humidity range: working temperature 0-50 ° C (humidity 35-85% RH without condensation), storage temperature -20-60 ° C.

Mechanical endurance: Impact resistance performance of 147m/s ² (3 times for X/Y/Z axes), and the overall weight of the machine is controlled below 1kg.

4、 Functional characteristics

Alarm system: Supports ON/OFF or ON condition triggered bit/word alarms, providing multi-level font/color priority display.

Data management: Built in real-time trend recording function, supporting single/multi-point sampling and X/Y coordinate plotting.

Development environment: Integrated with Sysmac Studio automation software, supporting VB macro programming and offline simulation of ladder diagrams.

Language support: The visual language library covers 42 languages, the software interface supports switching between 8 languages, and the system information can display 88 languages.

Security mechanism: Equipped with an operation permission grading system, supporting ID execution restrictions and encrypted transmission of device status.

Diagnostic tool: SmartActiveParts library provides fault self checking function and generates visual solution documents.

Multimedia extension: Some models support animation/PDF file parsing and are compatible with SPMA single port multi device protocol.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
