Omron NS12-TS00B-V2 New and Original High quality

NS12-TS00B-V2

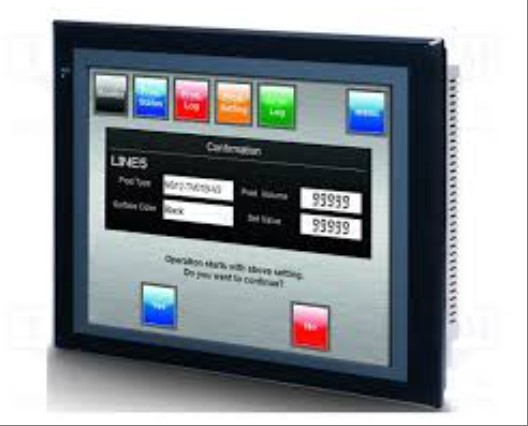

The NS12-TS00B-V2 model product is a 12.1-inch color TFT touch screen human-machine interface (HMI), Adopting high brightness LED backlit display screen, supporting 65536 color true color display, with a resolution of 640 × 480 pixels, equipped with resistive touch screen technology, it has industrial grade protection performance, with a shell protection level of IP65, which can effectively prevent dust and water, adapt to the working temperature range of 0 ° C to 50 ° C and the humidity environment of 35% to 85%, compatible with DC24V ± 15% power supply, supports RS-232C serial communication interface, provides Compact Flash memory card slot expansion storage capacity, comes standard with 128MB memory, supports multilingual display (including Chinese), integrates CX One toolkit to achieve synchronous simulation development of ladder program and image data, suitable for device monitoring, data acquisition and visualization interaction needs in complex industrial scenes, especially for display size, protection level and Industrial automation control scenarios with high storage capacity requirements.

Technical specifcations for NS12-TS00B-V2

Basic specifications

Display size: 12.1-inch color TFT display screen, with a large display area, suitable for complex industrial scenes.

Shell color: black, in accordance with industrial equipment design specifications.

Protection level: IP65 (dustproof and waterproof), meeting NEMA 4 standards, suitable for harsh environments such as high dust and humidity.

2、 Display parameters

Resolution: commonly 640 × 480 pixels or 800 × 600 pixels, meeting the display accuracy requirements of industrial scenes.

Display color: 65536 true color display, supporting complex graphics and dynamic image presentation.

Display type: TFT LCD with LED backlight, balancing high brightness and low power consumption characteristics.

3、 Electrical parameters

Power supply voltage: DC24V ± 15% (i.e. 20.4-27.6V), compatible with mainstream power supply systems in industrial sites.

Power consumption: Specific values have not been disclosed, but energy-saving is achieved through LED backlight design.

4、 Environmental adaptability

Working temperature range: 0 ° C to 50 ° C (may be adjusted due to installation angle and expansion module, if there is no expansion device, it is 0-45 ° C; when installing video input unit or controller link interface unit, it is 0-35 ° C; when the installation angle is 30-90 ° in the horizontal direction, it is 0-50 ° C).

Storage temperature range: -20 ° C to 60 ° C, suitable for extreme storage environments.

Working humidity range: 35% to 85% RH (no condensation), meeting the operational requirements of humid workshops.

5、 Interface and Communication

Communication interface: RS-232C serial communication interface is standard, and some models may be equipped with Ethernet ports, supporting multiple industrial protocols.

Storage card expansion: Built in Compact Flash slot, supporting storage card capacity expansion.

USB interface: Provides USB interface, supports program download and data backup.

6、 Functional characteristics

Touch screen technology: resistive touch screen, supporting glove operation, with a touch life of up to 1000000 times (at 25 ° C).

Multi language support: including Chinese language display, suitable for global application scenarios.

Data recording capability: capable of storing 160000 points of data and 5000 alarm records, supporting historical data traceability.

Development toolkit: Integrate CX One toolkit to achieve synchronous simulation development of ladder diagram programs and screen data.

Alarm function: Built in alarm code system, supporting screen management and recipe management.

Vector graphics support: compatible with vector graphics display, enhancing interface interaction experience.

User Script: Supports custom script programming to enhance functionality and scalability.

7、 Security and Certification

Anti interference: Complies with IEC61000-4-4 standard and can withstand 2kV transient interference (power line).

Grounding resistance: ≤ 100 Ω, ensuring electrical safety.

Product Certification: Certified to UL 508, UL 1604, EMC Directive, NK, and LR standards to ensure product safety and reliability.
