Omron NS10-TV01B-V2 New and Original High quality

NS10-TV01B-V2

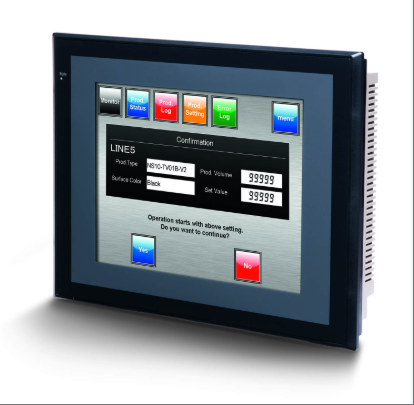

The NS10-TV01B-V2 model product is a 10.4-inch color TFT touch screen human-machine interface (HMI), Adopting a high brightness LED backlit display screen, supporting 65536 color true color display, with a resolution of 640 × 480 pixels, equipped with resistive touch screen technology, it has industrial grade protection performance, with a shell protection level of IP65, suitable for working temperature range of 0 ° C to 50 ° C and humidity environment of 35% to 85%, compatible with DC24V ± 15% power supply, supporting RS-232C serial communication interface and equipped with Ethernet port, built-in Compact Flash memory card slot to expand storage capacity, standard 40MB onboard memory, can store 160000 points of data and 5000 alarm records, supports multilingual display (including Chinese), integrates CX One toolkit to achieve synchronous simulation development of ladder program and image data, suitable for device monitoring, data acquisition and other complex industrial scenarios. Visual interaction requirements.

Technical specifcations for NS10-TV01B-V2

1、 Basic specifications

Dimensions: 323 × 241 × 49mm, compact design for easy integration and installation.

Shell color: black, in accordance with industrial equipment standard color matching.

Display size: 10.4-inch color TFT display screen, providing a clear visual interface.

2、 Display parameters

Resolution: 640 × 480 pixels, meeting the display accuracy requirements of industrial scenes.

Display color: 65536 true color display, supporting complex graphics and dynamic image presentation.

Display type: TFT LCD with LED backlight, ensuring high brightness and low power consumption performance.

3、 Electrical parameters

Power supply voltage: DC24V ± 15% (i.e. 20.4-27.6V), compatible with common power supply systems in industrial sites.

Power consumption: The specific value is not disclosed, but energy-saving features are achieved through LED backlight design.

4、 Environmental adaptability

Working temperature range: 0 ° C to 50 ° C (may be adjusted due to installation angle and expansion module, if there is no expansion device, it is 0-45 ° C; when installing video input unit or controller link interface unit, it is 0-35 ° C; when the installation angle is 30-90 ° in the horizontal direction, it is 0-50 ° C).

Storage temperature range: -20 ° C to 60 ° C, suitable for extreme storage environments.

Working humidity range: 10% to 90% RH (no condensation), meeting the operational requirements of humid workshops.

Protection level: IP65 (dustproof and waterproof), compliant with NEMA 4 standard, can resist dust and water splash invasion.

5、 Interface and Communication

Communication interface: Standard RS-232C serial communication interface, supports Ethernet ports (some models are configured), and is compatible with multiple industrial protocols.

Storage card expansion: Built in Compact Flash slot, supporting storage card capacity expansion.

USB interface: equipped with USB interface, supporting program download and data backup.

6、 Functional characteristics

Touch screen technology: resistive touch screen, supporting glove operation, with a touch life of up to 1000000 times (at 25 ° C).

Multi language support: Display in multiple languages including Chinese, suitable for global application scenarios.

Data recording capability: capable of storing 160000 points of data and 5000 alarm records, supporting historical data traceability.

Development toolkit: Integrate CX One toolkit to achieve synchronous simulation development of ladder diagram programs and screen data.

Alarm function: Built in alarm code system, supporting 10 screens and 1:10 recipe management.

Vector graphics support: compatible with vector graphics display, enhancing interface interaction experience.

User Script: Supports custom script programming to enhance functionality and scalability.

7、 Security and Certification

Anti interference: Complies with IEC61000-4-4 standard and can withstand 2kV transient interference (power line).

Grounding resistance: ≤ 100 Ω, ensuring electrical safety.

Product Certification: Certified to UL 508, UL 1604, EMC Directive, NK, and LR standards to ensure product safety and reliability.
