Omron NS10-TV00B-V2 New and Original High quality

NS10-TV00B-V2

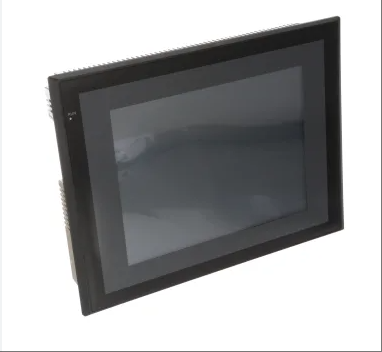

The NS10-TV00B-V2 model product is a 10.4-inch color TFT touch screen human-machine interface (HMI), featuring a high brightness LED backlit display screen, supporting 65536 true color displays, with a resolution of 640 × 480 pixels. It is equipped with resistive touch screen technology and has industrial grade protection performance. The shell protection level reaches IP65 (dustproof and waterproof), with a working temperature range of 0 ° C to 50 ° C and a humidity tolerance range of 35% to 85% (no condensation). It is compatible with DC24V ± 15% power supply, provides RS-232C serial communication interface and optional Ethernet port, supports Compact Flash memory card expansion, comes standard with 40MB onboard memory, can store 160000 points of data and 5000 alarm records, supports multilingual display (including Chinese), and CX One toolkit integrated development, suitable for device monitoring, data collection, and visualization interaction requirements in complex industrial scenarios.

Technical specifcations for NS10-TV00B-V2

Basic information

Model:  NS10-TV00B-V2.

Monitor size: 10.4 inches.

Input method: Touch screen input, using resistive touch screen technology, operating force of 0.5-0.8N, withstand voltage at least 1000000 times (at 25 ° C).

2、 Display parameters

Resolution: 640 × 480 pixels.

Display type: Color TFT LCD, equipped with LED backlight, providing high brightness and clear display effect.

Display color: 65536 colors, meeting the rich color display needs in industrial scenes.

3、 Electrical parameters

Power supply voltage: DC24V, with an allowable voltage variation range of DC20.4-27.6V (i.e. DC24V ± 15%).

Power consumption: usually low, suitable for energy-saving needs in industrial sites.

4、 Environmental adaptability

Working temperature range: 0 ° C to 50 ° C (may be adjusted due to installation angle and expansion module, if there is no expansion device, it is 0-45 ° C; when installing video input unit or controller link interface unit, it is 0-35 ° C; when the installation angle is 30-90 ° in the horizontal direction, it is 0-50 ° C).

Storage temperature range: -20 ° C to 60 ° C.

Working environment humidity: 10% to 90% RH (no condensation).

Protection level: The panel protection level is usually higher, but it may vary slightly depending on the product version or configuration, generally reaching IP65 or higher, suitable for harsh industrial environments.

5、 Interface and Communication

Communication interface: Supports RS-422A/485 serial communication interface, some models may be equipped with Ethernet ports, supporting Ethernet communication.

Memory card slot: Supports Compact Flash memory card expansion for convenient data storage and software updates.

USB interface: Equipped with a USB interface, supporting USB memory sticks for easy data transfer and program download.

6、 Functional characteristics

Multi language support: Supports multiple language displays, including Chinese, making it convenient for users from different regions to use.

Data recording and alarm: Supports a large amount of data recording and alarm event recording, facilitating troubleshooting and data analysis.

Ladder diagram monitor: It can monitor ladder diagram programs on site without the need for a desktop computer, and supports functions such as program status monitoring, address search, and I/O point monitoring.

FA integration toolkit: comes standard with CX One toolkit, supports integrated simulation of graphic design software, and achieves synchronous simulation of ladder program and graphic data.

Smart Active Parts (SAP library): simplifies the connection process of Omron PLC and its components, improving equipment integration efficiency.

7、 Physical characteristics

Shell color: usually black or ivory white, with slight differences depending on product version or configuration.

Size and weight: The external dimensions may vary slightly due to product versions or configurations, but are generally designed to be compact and easy to integrate on control cabinets or operation panels; The weight is about 600-700g.
