Omron GX-JC06 New and Original High quality

GX-JC06

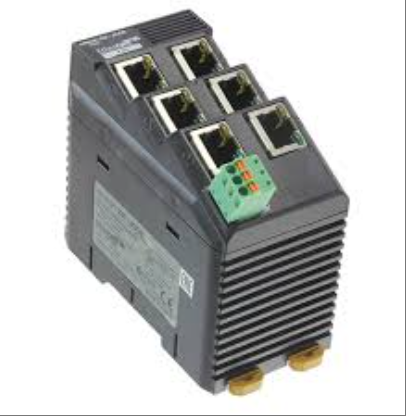

The GX-JC06 model product is a 6-port branch slave module based on the EtherCAT protocol, belonging to industrial automation network equipment. It has high-speed real-time communication capability and flexible topology layout through three ports, supporting efficient data transmission and collaborative control between devices. This module adopts a compact design that can adapt to the wiring requirements of complex industrial sites, and integrates optoelectronic coupling isolation technology to ensure signal stability within a wide voltage input range of DC20.4V to 28.8V. At the same time, it has IP20 protection level and anti electromagnetic interference capability, suitable for industrial scenarios such as mechanical manufacturing and logistics sorting that require strict network response speed and reliability. It is a key component in building distributed automation systems.

Technical specifcations for GX-JC06

Basic electrical parameters

Power supply voltage range: DC20.4V to 28.8V, compatible with common DC power supply systems in industrial sites, ensuring stable operation of equipment even under voltage fluctuations.

Working temperature range: -10 ℃ to 55 ℃, meeting the environmental temperature requirements of the vast majority of industrial scenarios and adapting to different regional climate conditions.

Protection level: IP20， Can prevent solid foreign objects with a diameter greater than 12.5mm from entering, suitable for dust-free or low dust environments.

Weight: Approximately 220g, compact and lightweight design for easy installation and integration.

Number of ports: 6, supporting multi device access, optimizing network topology structure.

2、 Functional characteristics

Communication protocol: Supports EtherCAT protocol and can seamlessly connect with Omron Sysmac series controllers to achieve high-speed real-time communication.

Data transmission rate: With high-speed communication capability, ensuring data synchronization delay between devices is less than 1ms, suitable for high real-time scenarios such as motion control.

Topology support: Supports various topology structures such as line type, tree type, star type, etc., and can be flexibly adjusted according to on-site wiring requirements.

Port redundancy design: Key ports support hot plugging function, which eliminates the need to interrupt network operation during device maintenance.

Diagnostic function: Built in self diagnostic program, which can provide real-time feedback on port connection status and communication quality through LED indicator lights.

3、 Electromagnetic compatibility and certification

Safety certification: Through international certifications such as UL, CSA, T Ü V, etc., it complies with the IEC 61800-3 standard and is suitable for the global industrial market.

Electromagnetic compatibility: Complies with EN 55011 Class A standard, with anti-interference ability of 3V/m, which can effectively resist electromagnetic interference in industrial sites.

Environmental standards: Compliant with RoHS directive, lead-free design, and green manufacturing requirements.

4、 Environmental adaptability

Humidity range: 35% to 85% RH (no condensation), suitable for humid or dry environments.

Vibration tolerance: Complies with IEC 60068-2-6 standard and can withstand vibrations with an amplitude of 0.35mm within the frequency range of 10-150Hz.

Impact resistance: Complies with IEC 60068-2-27 standard and can withstand an impact acceleration of 150m/s ².
