GX-JC03

Omron GX-JC03 New and Original High quality

Omron GX-JC03 module

  • Item no.:

    GX-JC03
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    JP
  • Color:

    New sealed
  • Lead Time:

    In stock/1-3days

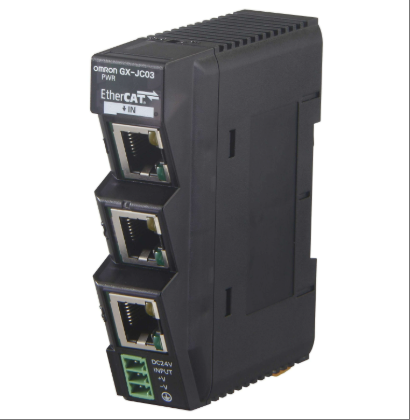

GX-JC03

The GX-JC03 model product is a high-performance EtherCAT branch slave device designed specifically for industrial automation networks. It features a compact three port structure and supports flexible fieldbus topology layout, enabling high-speed real-time communication between devices. This product adopts optocoupler isolation technology, with an input voltage range covering DC5-24V and an output load capacity of 2A (DC5-110V). It is compatible with small load signal processing requirements and is equipped with action indicator lights for status visualization. Its modular design supports DIN rail installation and seamlessly integrates with Omron G70A I/O terminals and other control devices. It has passed multiple international certifications such as UL, CSA, EN (VDE), ensuring stable operation in a wide temperature range of -10 to 55 ℃ and humidity conditions of 10-90% RH, while complying with RoHS environmental standards. It is widely used in industrial scenarios such as mechanical manufacturing and logistics sorting that require strict network response speed and reliability, providing efficient and reliable network connection solutions for intelligent manufacturing systems.







Technical specifcations for GX-JC03

Electrical parameters

Power supply voltage: DC20.4V to 28.8V, suitable for a wide range of voltage fluctuations, ensuring stable operation of the equipment under different power supply conditions.

Working current: GX-JC03 has a working current of 80mA and has lower power consumption performance among similar products.

Rated input voltage: Supports DC5V to 24V input, suitable for various signal input scenarios.

Output applicable load: The output circuit has a load capacity of 2A DC5 to 110V, which can drive small and medium power devices.

2、 Functional characteristics

Interface and Protocol: Adopting EtherCAT interface, supporting real-time industrial Ethernet communication protocol to ensure efficient and accurate data transmission.

Indicator light design: equipped with a yellow action indicator light, which provides real-time feedback on the device's operating status through LED status display, facilitating quick fault diagnosis.

Safety certification: Obtained international standard certifications such as UL, CSA, EN (VDE certification), etc., in compliance with industrial safety regulations.

Installation method: Supports dual installation of DIN rails and screws, which can flexibly adapt to different control cabinet structural requirements.

Environmental adaptability: Operating temperature range -10 ℃ to 55 ℃, storage temperature range -25 ℃ to 65 ℃, humidity tolerance range 25% to 85% RH (no condensation), suitable for complex industrial environments.

3、 Structure and Size

Dimensions: The product dimensions are 25mm × 78mm × 90mm, with a compact design that facilitates integration and deployment in limited spaces.

Structural features: Adopting a slim integrated design of heat sinks, optimizing space occupancy while ensuring heat dissipation performance.

Installation compatibility: The modular structure supports seamless integration with Omron G70A I/O terminals and other devices, simplifying the system architecture.

4、 Electromagnetic compatibility and environmental protection

Anti interference capability: certified by EMC instructions, with electromagnetic compatibility design, capable of stable operation in strong electromagnetic interference environments.

Environmental standards: Complies with RoHS directive requirements, does not contain harmful substances such as lead and mercury, and meets environmental regulations.

Protection level: IP20 protection level can prevent solid foreign objects with a diameter greater than 12.5mm from entering, ensuring the safety of equipment on industrial sites.
