Omron GX-ID1621 New and Original High quality

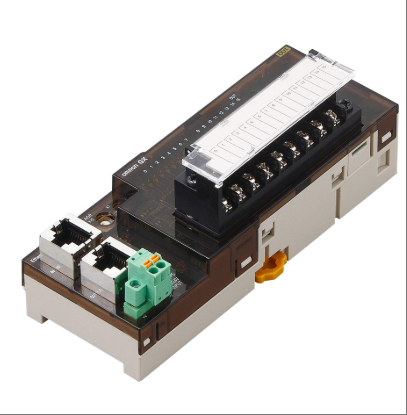

GX-ID1621

The GX-ID1621 model product is a high-performance EtherCAT digital input module designed specifically for industrial automation systems. Its core function is to achieve 16 channel PNP digital signal input through a double-layer terminal block, supporting seamless integration with Omron Sysmac series controllers and building high-speed real-time communication networks. This module adopts a compact structure design and is compatible with DIN rail installation. It can efficiently process switch signals from sensors, switches and other devices, and relies on EtherCAT protocol to achieve 100Mbps full duplex communication, ensuring data transmission delay of less than 1ms, meeting the strict real-time requirements of mechanical manufacturing, logistics sorting and other scenarios. Its working voltage range covers DC20.4V to 28.8V, with IP20 protection level and anti electromagnetic interference capability. It can operate stably in ambient temperatures ranging from -10 ℃ to 55 ℃, and also complies with RoHS environmental standards. It is a key signal acquisition component in distributed I/O systems.

Technical specifcations for GX-ID1621

Basic information

Product Type: Digital Input Module

Belonging series: GX series

Input type: PNP type

Number of input channels: 16 channels

Communication protocol: EtherCAT

Manufacturer: Omron Automation and Safety

2、 Electrical parameters

Power supply voltage range: DC20.4V to 28.8V (also known as 20.4V to 26.4V)

Input voltage range: Supports PNP input, the specific voltage range needs to be determined based on the input signal, but usually matches the power supply voltage range

Noise Resistance: Compliant with IEC 61000-4-4 standard, 2kV (power cord)

3、 Environmental parameters

Working temperature range: -10 ℃ to 55 ℃

Storage temperature range: -25 ℃ to 65 ℃

Working humidity range: 25% to 85% (no condensation)

Protection level: IP20

4、 Mechanical parameters

Installation method: Supports DIN rail installation

Dimensions: Compact design, specific dimensions need to refer to the product manual

Weight: Approximately 220g (specific weight may vary slightly due to product configuration)

5、 Functional characteristics

Topology support: Supports various topology structures such as line type, tree type, star type, etc

Diagnostic function: Built in self diagnostic program, which can provide real-time feedback on port connection status and communication quality through LED indicator lights

Signal processing: Equipped with high-speed signal processing capabilities to ensure real-time and accurate data transmission

6、 Certification and Standards

Safety certification: Passed international certifications such as UL, CSA, T Ü V, etc., in compliance with IEC 61800-3 standard

Environmental standards: Compliant with RoHS directive, lead-free design

7、 Other characteristics

Terminal block type: Adopting a double-layer terminal block design for easy on-site wiring and maintenance

Heat dissipation design: Integrated heat sink to ensure the stability of the device during long-term operation

Compatibility: Seamless integration with Omron Sysmac series controllers to build high-speed real-time communication networks
