CS1W-MC221-V1

Omron CS1W-MC221-V1 New and Original High quality

Omron CS1W-MC221-V1 module

  • Item no.:

    CS1W-MC221-V1
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    JP
  • Color:

    New sealed
  • Lead Time:

    In stock/1-3days

CS1W-MC221-V1

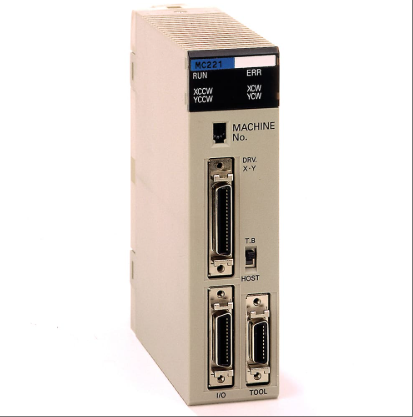

The CS1W-MC221-V1 model product is a high-performance motion control unit designed specifically for industrial automation scenarios. It supports 2-axis analog output and is compatible with G language programming. It can be flexibly used as a master or slave station to access the system, achieving high data synchronization and multi axis collaborative control. It is equipped with an encoder input interface (supporting open collector or RS-422 linear driver input), with a maximum count rate of 500kHz, providing 32-bit wide range counting capability, and supporting multiple counting modes such as ring and linear. The module has built-in 8-point analog output (signal range can be selected from 1-5V, 0-5V, 0-10V, ± 10V), and can be quickly wired through detachable terminal blocks to adapt to multiple types of actuators. The product adopts a compact design and supports the integration of 10 basic I/O units (totaling 960 points) into the CPU device, significantly improving space utilization. By using DLNK instructions, I/O data can be immediately refreshed, optimizing data links, remote I/O communication, and protocol macro response speed. It is particularly suitable for automation equipment that requires high-precision synchronous control and real-time data processing, such as CNC machine tools, packaging machinery, and robot systems. It can effectively simplify system architecture and improve control efficiency.





Technical specifcations for CS1W-MC221-V1

Basic specifications

Power supply and protection: DC24V power supply (DC20.4-28.8V) is used, with a protection level of IP40, suitable for industrial automation scenarios.

Storage and Programming: Equipped with a 2K step program capacity, supporting G language programming, compatible with multitasking control, and capable of running independent tasks on two axes simultaneously.

Interface and Extension: Provides RS232/RS485/RS422 communication interface, supports combination with configurator for efficient debugging and parameter setting.

2、 Motion control performance

Axis control capability: A single unit can control 2 or 4 axes, and a single PLC system can expand up to 76 axes (19 units x 4 axes).

Response speed: The response time is 8ms for 2-axis control and 13ms for 4-axis control.

Encoder response: Supports 4x frequency multiplication, and the encoder response frequency can reach up to 2Mpps.

Positioning control: Supports full closed-loop control, and can output interrupt codes to the CPU unit at the end of positioning (D code output time up to 3.3ms).

3、 Input/output characteristics

Analog output:

Output points: 8 points.

Signal range: Supports four adjustable levels of 1-5V, 0-5V, 0-10V, and ± 10V, with each channel set independently.

Output form: transistor (drain type).

Encoder input:

Input type: open collector or RS-422 linear driver.

Input voltage: DC5V, DC12V, or DC24V.

Counting rate: up to 500kHz for linear drive input and 50kHz for open collector input.

Counting range: 32 bits.

4、 Environmental adaptability

Working temperature: 0 ℃ to 55 ℃.

Humidity range: 10% to 90% RH (no condensation).

Pollution level: Complies with IEC 61010-2-201 standard, pollution level 2 or below.

5、 System integration capability

Data synchronization: Supports master/slave mode to ensure high synchronization of multi axis data.

I/O control efficiency: Immediate refreshing of I/O data is achieved through DLNK instructions, optimizing the response speed of data links, remote I/O communication, and protocol macros.

Space efficiency: 10 basic I/O units (96 points each) can be integrated into the CPU device to achieve 960 point I/O control.















Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.



Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment



More Products In Stock:

SRT2-ID16-1 NT20-ST121-E    SRT2-OD16-1   C200H-OD217 C200H-DA002
200H-OC226N S8VK-G06024  S8VS-12024  NX-SID800 CS1W-MC221-V1
CP2E-S30DT1-D CJ1W-OC211 KN3M251000 G9SP-N20S CJ1W-PA202
S8JX-P60024C NX-AD3204   2 NX-END02   1 NX-ID5142-1    8 NX-OC4633    9
NX-PD1000    3 CJ1W-MAD42 CJ1W-ID212 CJ1W-OD212 GX-JC03
GX-JC06 GX-ID1621 NS5-SQ10B-V2 NS5-TQ10B-V2 NS5-SQ11B-V2
NS5-TQ11B-V2 NS5-SQ00B-V2 NS5-MQ10B-V2 NS8-TV00B-V2 NS8-TV01B-V2
NS10-TV00B-V2 NS10-TV01B-V2 NS12-TS01B-V2 NS12-TS00B-V2 NS15-TX01B-V2
