Omron CP2E-S30DT1-D New and Original High quality

CP2E-S30DT1-D

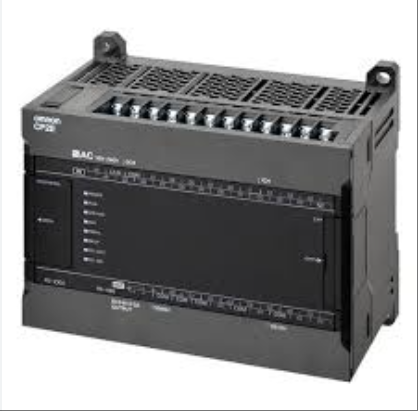

The CP2E-S30DT1-D model product is a cost-effective miniature programmable logic controller (PLC), belonging to the CP2E series standard type (S series), designed specifically for industrial automation scenarios. This product integrates 18 digital inputs and 12 transistor (source type) solid-state outputs, powered by a 24VDC power supply, supports DIN rail installation and screw terminal connection, and has a compact design (boxed) and reliable protection performance (IP40). Its core advantages include 8K step program capacity, 8K word data storage capability, and a multitasking control architecture that supports G language programming, allowing for the simultaneous execution of two independent axis tasks. The product is equipped with RS232/RS485/RS422 communication interfaces, compatible with protocols such as Modbus RTU, and can be quickly wired through detachable terminal blocks. It is suitable for working environments with a wide temperature range of -20 ℃ to 60 ℃. As a standard module, this product integrates one RS-232C and one RS-422/485 serial port, which can meet the common communication needs of small devices, especially suitable for scenarios such as packaging machinery and molding equipment that require multi axis synchronous control and data acquisition. By expanding the option board, the number of communication interfaces can be further increased, achieving efficient automation process control.

Technical specifcations for CP2E-S30DT1-D

I/O configuration:

Input points: 18 digital inputs, supporting 24VDC voltage.

Output points: 12 point transistor (source type) solid-state output, suitable for high-frequency switching loads.

Output characteristics: The transistor has a fast response speed and is suitable for high-speed pulse control scenarios.

Storage and program capabilities:

Program capacity: 8K steps, supporting complex logic control programs.

Data storage capacity: 8K words, capable of storing a large number of variables and intermediate data.

Power supply and protection:

Supply voltage: 24VDC (range 20.4V-28.8V), compatible with industrial standard power supply.

Protection level: IP40, suitable for indoor environments without dust and conductive pollutants.

Communication interface:

Serial port configuration: Integrated with 1 RS-232C and 1 RS-422/485 serial port, supporting protocols such as Modbus RTU.

Scalability: The number of communication interfaces can be increased through the option board to meet the networking needs of multiple devices.

Environmental adaptability:

Working temperature range: -20 ℃ to 60 ℃, covering most industrial site environments.

Humidity range: 10% -90% RH (no condensation), suitable for humid conditions.

Installation and dimensions:

Installation method: DIN rail installation, compatible with standard industrial control cabinets.

Dimensions: Compact design, saving control cabinet space.

Compliance certification:

Safety standards: comply with international standards such as IEC 61131-2 to ensure system reliability.
