Omron CJ1W-PA202 New and Original High quality

CJ1W-PA202

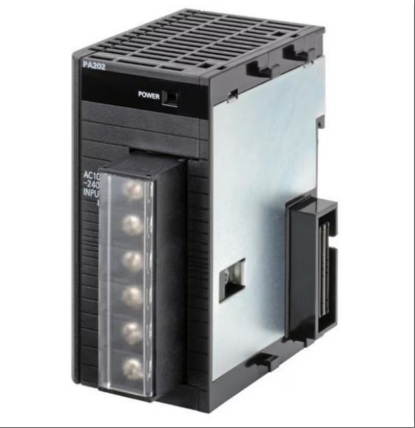

The CJ1W-PA202 model product is a CJ1 series PLC power supply unit, designed with AC100-240V wide voltage input and a standard output capacity of 2.8A DC5V, which can adapt to the power supply needs of automation systems of different scales. This model integrates operation status monitoring and maintenance prediction functions, simplifies equipment maintenance processes by outputting diagnostic signals, and supports seamless integration with CJ1 series CPU units and expansion modules to build a stable and reliable industrial control system. Its compact structure and high-performance power conversion characteristics give it significant application advantages in scenarios such as factory automation and process control.

Technical specifcations for CJ1W-PA202

Power supply parameters

Input voltage: AC100～240V（50/60Hz）， Supports wide voltage input and adapts to voltage standards in different regions.

Working voltage range: AC85～264V，47～63Hz， Has stronger adaptability to voltage fluctuations.

Power consumption: maximum 50VA, total power consumption of 14W, efficient and energy-saving design to reduce operating costs.

2、 Output parameters

Output voltage: DC5V， Suitable for supplying power to internal logic circuits of PLC.

Output current: 2.8A (DC5V), can stably drive CPU units and expansion modules.

Additional output: Provides 0.4A (DC24V) output capability to meet the power supply needs of some sensors or actuators.

3、 Structural parameters

Dimensions: Width 45mm, height 90mm, depth 81.6mm, compact design saves cabinet space.

Weight: Approximately 5kg, easy to install and maintain.

Installation method: Supports DIN rail or rack mounted installation, suitable for various industrial control cabinet layouts.

4、 Environmental parameters

Working temperature: 0-55 ℃, suitable for high-temperature industrial environments.

Storage temperature: -20~75 ℃, ensuring the stability of the equipment in extreme environments.

Humidity range: 10% to 90% (no condensation), to prevent damage to the circuit caused by humidity.

Protection level: IP20 (excluding terminal blocks), suitable for general industrial environments.

5、 Electrical performance parameters

Insulation resistance: ≥ 20M Ω (DC500V) between external terminal and GR terminal to ensure circuit isolation safety.

Voltage resistance performance: AC2300V (50/60Hz) for 1 minute between the external terminal and GR terminal, leakage current ≤ 10mA, in compliance with IEC standards.

Anti interference: The power cord is 2kV (compliant with IEC61000-4-4 standard), effectively suppressing electromagnetic interference.

Vibration resistance: amplitude of 3.5mm at 5-8.4Hz, acceleration of 9.8m/s ² at 8.4-150Hz, suitable for vibration environment.

Impact resistance: 147m/s ², 3 times in each of the X, Y, and Z directions, ensuring the reliability of the equipment during transportation and operation.

6、 Certification and Standards

Certification bodies: cULus, CE, etc. The products comply with international safety and quality standards.

Compliant with standards such as IEC 61131-2 and EN 61000, ensuring compatibility and stability in industrial automation systems.
