Omron CJ1W-OD212 New and Original High quality

CJ1W-OD212

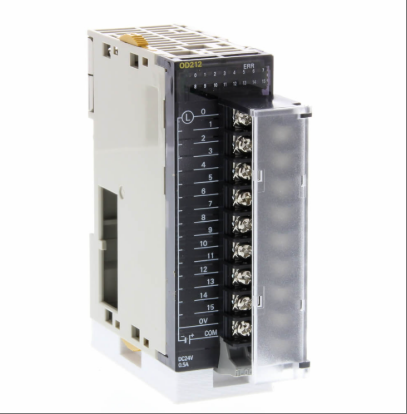

The CJ1W-OD212 model product is a 16 point transistor output module designed specifically for industrial automation control. It adopts a source output mode and has a rated voltage of DC24V. It has high-speed response capability and high reliability, and is suitable for scenarios that require fast and precise control of external devices. This module supports a maximum load current of 0.5A/point, and the total load current of the unit can reach 5A, meeting the requirements of multi-channel output; Equipped with detachable terminal blocks, supporting load short-circuit protection and alarm functions, effectively improving system safety and maintenance convenience; Its compact design is compatible with DIN rail installation, seamlessly compatible with CJ series PLCs, and has passed international certifications such as CE, cULus, Lloyd, NK, etc., meeting strict industrial environmental standards. With excellent anti-interference ability, stable performance, and high compatibility, this module is widely used in industrial fields such as mechanical manufacturing and automated production lines, becoming a key component for building efficient control systems.

Technical specifcations for CJ1W-OD212

Basic electrical parameters

Output type: transistor output (source type)

Output points: 16 points

Rated voltage: DC24V

Maximum load current:

Load current per point: 0.5A

Unit total load current: 5A

Power consumption: Under a 5V power supply, the current consumption is 0.10A

2、 Functional characteristics

External connection:

Adopting detachable terminal blocks for easy on-site wiring and maintenance.

Equipped with load short circuit protection function, effectively preventing module damage caused by overload or short circuit.

Support alarm function, which can issue alarm signals in case of abnormal situations such as load short circuit.

Response time: The transistor has a fast output response speed, which can meet the high-speed output requirements.

Output compatibility: Can be connected to various external devices to achieve precise ON/OFF control.

3、 Mechanical and installation parameters

Dimensions: The specific dimensions may vary slightly depending on the product version, but they are usually designed to be compact and easy to install in the control cabinet.

Weight: Approximately 120.2g (specific weight may vary slightly due to product configuration or shell material).

Installation method: Supports DIN rail installation and can be seamlessly integrated with CJ series PLC.

Terminal type: Screw terminal block connection is used to ensure stable and reliable electrical connection.

4、 Environmental adaptability

Working temperature: 0 ℃ to 55 ℃, meeting the temperature requirements of conventional industrial environments.

Storage temperature: -25 ℃ to 70 ℃, suitable for extreme storage or transportation conditions.

Humidity range: 10%~90% RH (no condensation), suitable for humid or dry environments.

Protection level: IP20, preventing solid foreign objects with a diameter greater than 12.5mm from entering.

5、 Electromagnetic compatibility and certification

Safety certification: Through international certifications such as CE, cULus, Lloyd, NK, etc., ensure compliance with global industrial safety standards.

Electromagnetic compatibility: It has excellent anti-interference ability and can operate stably in complex electromagnetic environments.

Environmental standards: Compliant with RoHS3 specifications, moisture sensitivity level MSL1 (unlimited), suitable for scenarios with strict environmental requirements.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
