CJ1W-OC211

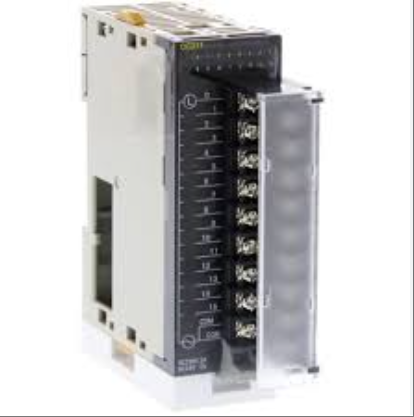

The CJ1W-OC211 model product is a CJ series 16 point contact output unit suitable for the industrial automation field. It adopts an independent relay output structure and is equipped with a detachable terminal block. It supports 24VDC or 240VAC wide power input, with a maximum switch capacity of 2A (AC250V/DC24V). Its 16 output channels are efficiently wired through common terminals, and each channel has a fast ON/OFF response capability of less than 15ms. The product is equipped with a relay with an electrical life of 150000 times (DC24V resistance load). The insulation resistance reaches 20M Ω and the withstand voltage test meets the AC2000V standard. It can be flexibly integrated into the CJ1 series PLC system through the RS-232C/RS-422/485 interface, which is particularly suitable for equipment control scenarios that require high reliability relay output. Such as packaging machinery, conveyor systems, and industrial equipment drive modules.
Technical specifcations for CJ1W-OC211
Output points and types:
Output points: 16 points.
Output type: Relay output (normally open contact).
Maximum switch capacity: 2A, suitable for loads of AC250V (cos φ=1 or cos φ=0.4) and DC24V (8A/unit).
Minimum switch capacity: 1mA DC5V.
Electrical lifespan and response time:
Electrical lifespan: up to 150000 operations under DC24V resistive load and up to 100000 operations under AC250V (cos φ=0.4) inductive load.
ON response time: below 15ms.
OFF response time: below 15ms.
Power and current consumption:
Working power supply voltage: Supports 24VDC or 250VAC (depending on the application scenario, but typically relay output units use lower DC voltage for power supply).
Internal current consumption: maximum 110mA DC5V or maximum 96mA DC24V (specific value depends on the actual number of connection points).
Insulation and voltage resistance:
Insulation resistance: When tested with DC500V between the external terminal and GR terminal, the insulation resistance can reach 20M Ω.
Voltage endurance: Apply AC2000V voltage between the external terminal and GR terminal, with a maximum leakage current of 10mA within one minute.
Physical dimensions and installation:
Dimensions: Height 90mm, Width 31mm, Depth 89mm.
Weight: Approximately 118g to 170g (specific values may vary slightly depending on different sources).
Installation method: Supports DIN rail installation for easy integration into industrial control cabinets.
Terminals and Connections:
Terminal type: Removable terminal block for easy wiring and maintenance.
Circuit configuration: 16 points/common, 1 circuit, supports efficient wiring.
Environmental adaptability:
Working temperature range: usually suitable for industrial environments, specific temperature range may need to refer to the product manual (generally PLC modules can work within the range of 0 ℃ to 55 ℃).
Humidity range: Relative humidity between 10% and 90% RH (no condensation).
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
