Omron CJ1W-MAD42 New and Original High quality

CJ1W-MAD42

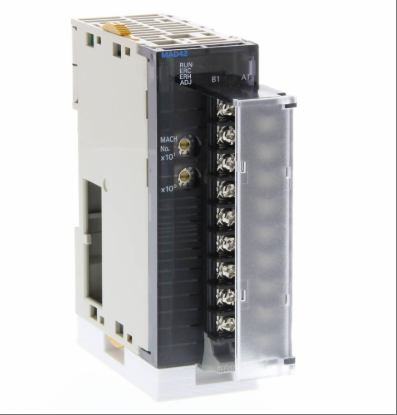

The CJ1W-MAD42 model product is a multifunctional I/O module that integrates analog input and output functions, designed specifically for industrial automation control systems. This module has 4 analog input channels and supports multiple signal range selections, including 1-5V, 0-5V, 0-10V, -10-10V, and 4-20mA. It can flexibly adapt to different types of sensors and transmitters; Simultaneously providing 2 analog output channels, supporting voltage or current signal output, to meet the precise control requirements of the actuator. Its core advantages include high resolution (1/4000, can be set to 1/8000) and high-speed conversion capability (1ms/point, can be set to below 500 μ s/point), ensuring real-time signal acquisition and output; The comprehensive accuracy reaches ± 0.2% for voltage output and ± 0.2% for current output, ensuring data accuracy. The module is equipped with practical functions such as wire breakage detection, peak holding, and averaging processing, and supports bias gain setting and deviation gain adjustment, significantly improving the system's anti-interference ability and control flexibility. In addition, the CJ1W-MAD42 adopts a compact design that supports DIN rail installation, making it easy to seamlessly integrate with the CJ1 series PLC. It is widely used in complex industrial scenarios such as CNC machinery, metallurgy, oil and gas, paper printing, textile printing and dyeing, and is a key component for building high-precision and high reliability automation control systems.

Technical specifcations for CJ1W-MAD42

Basic electrical parameters

Input points: 4 points

Output points: 2 points

Signal range:

Input: Supports multiple signal ranges such as 1-5V, 0-5V, 0-10V, -10-10V, 4-20mA, etc. Each input point can be individually set.

Output: Supports multiple signal ranges such as 1-5V, 0-5V, 0-10V, -10-10V, 4-20mA, etc. Each output point can be individually set.

resolving power:

Default resolution: 1/4000

Adjustable resolution: 1/8000 (achieved through software settings)

Conversion speed:

Default conversion speed: 1ms/point

Adjustable conversion speed: below 500 μ s/point (achieved through software settings)

Comprehensive accuracy:

Voltage input accuracy: ± 0.2%

Current input accuracy: ± 0.2%

Voltage output accuracy: ± 0.3%

Current output accuracy: ± 0.3%

2、 Functional characteristics

Wire breakage detection: When the input range is set to 1-5V and the voltage drops below 0.8V, or set to 4-20mA and the current drops below 3.2mA, the wire breakage detection function is enabled, and the converted data will be set to 8000Hex.

Peak holding function: It can capture and hold the peak value of the input signal for subsequent analysis and processing.

Average processing: Supports average processing of input signals to reduce noise interference and improve signal stability.

Bias gain setting: Supports bias and gain adjustment of input signals to meet the needs of different application scenarios.

Ratio conversion: It can perform ratio conversion on input signals to achieve signal linearization processing.

Output retention: In case of power failure or module restart, the output signal can be kept unchanged to ensure the continuity and stability of the system.

3、 Mechanical and installation parameters

Dimensions: The module width is 31mm (specific dimensions may vary slightly due to product versions), and the height and depth are consistent with other I/O units in the CJ1 series, making it easy to install in compact cabinets.

Installation method: Supports DIN rail installation and can be seamlessly integrated with CJ1 series PLC.

Terminal type: Designed with detachable terminal blocks for easy on-site wiring and maintenance.

Weight: Approximately 150g (specific weight may vary slightly depending on product version)

4、 Environmental adaptability

Working temperature: 0 ℃~55 ℃

Storage temperature: -25 ℃~70 ℃ (without condensation or freezing)

Humidity range: 10% to 90% RH (no condensation)

Altitude: ≤ 2000m

Protection level: IP20 (effectively preventing dust and foreign objects from entering the interior of the module)

5、 Electromagnetic compatibility and certification

Electromagnetic compatibility: Compliant with electromagnetic compatibility standards such as IEC61000-4-4, effectively resisting electromagnetic interference.

Safety certification: Through international safety certifications such as UL508, ANSI/ISA 12.12.01, EN 61131-2, CE, cULus, Lloyd, NK, etc., ensure the safety of equipment in industrial environments.

Anti interference capability: Resistant to power line interference of 2kV (compliant with IEC61000-4-4 standard), ensuring the accuracy of signal acquisition and output.

6、 Power supply and current consumption

Working voltage: DC24V (voltage range DC20.4V~28.8V)

5V current consumption: 0.58A (specific current consumption may vary slightly depending on product version)

24V current consumption: Depending on the actual load situation of the module, it usually ranges from tens of milliamps to hundreds of milliamps.
