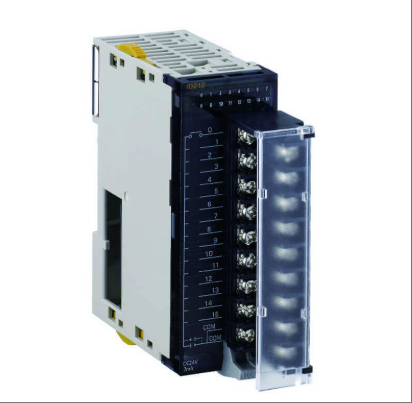

CJ1W-ID212
The CJ1W-ID212 model is a high-performance digital input module designed specifically for industrial automation. It has a 16 point DC24V input function, adopts a compact DIN rail installation structure, supports NPC/PNP bipolar input mode, is compatible with a wide voltage range of DC20.4V to 26.4V, has an input impedance of 3.3k Ω, and a typical input current of 7mA at DC24V. Its core advantages include high-speed response capability (ON response time ≤ 15 μ s, OFF response time ≤ 90 μ s), and supports flexible setting of response delay (0-32ms) through software, suitable for high-speed signal capture scenarios; The module adopts optocoupler isolation technology, with each group of 8 input points isolated from the internal circuit of the PLC. The insulation resistance is ≥ 20M Ω (DC100V), and the withstand voltage is AC1000V/1 minute (leakage current ≤ 10mA), significantly improving the system's anti-interference ability; The built-in digital filter (adjustable from 0 to 32ms) can effectively filter out noise interference, and each input point is equipped with an independent LED indicator light for quick diagnosis of input signal status; Supports Fujitsu/OTAX or MIL connector interfaces, adapts to diverse on-site wiring needs, and has passed international certifications such as CE, cULus, Lloyd, NK, etc., complying with RoHS3 environmental standards. It is widely used in industrial scenarios such as mechanical manufacturing, packaging production lines, logistics sorting, etc. that require high-speed and high-precision input signal processing, and is a key component in building reliable automation control systems.
Technical specifcations for CJ1W-ID212
Electrical parameters
Rated input voltage: DC24V, allowable voltage range is DC20.4V to 26.4V.
Input current: At DC24V, the typical value is 7mA.
Input type: Supports NPN or PNP connection standards, users can flexibly choose according to the on-site equipment.
Input response time:
ON response time: default 8ms, can be adjusted to 16ms, 32ms, or 64ms through settings to meet different application scenarios.
OFF response time: The typical value is 90 μ s (according to other data, it can be as low as 15 μ s, and the specific value may vary slightly due to testing conditions or product versions), ensuring quick response to input signal changes.
Input isolation method: Adopting optocoupler isolation technology, each group of 8 input signals is isolated from the internal circuit of the PLC, with insulation resistance ≥ 20M Ω (DC500V), withstand voltage AC1000V/1 minute (leakage current ≤ 10mA), effectively suppressing electromagnetic interference.
2、 Mechanical and installation parameters
Dimensions: Width 31mm, Height 90mm, Depth 89mm (Other data shows a depth of 65mm, which may vary due to different product versions or measurement standards).
Weight: Approximately 100g to 160g (specific values may vary slightly depending on product configuration or shell material).
Installation method: Supports DIN rail installation, in line with the trend of compact and modular design of industrial automation equipment.
Wiring method: Use screw terminal blocks to connect, terminal numbers A0~A8 and B0~B8 (some terminals are not printed on the unit, please refer to the external connection diagram), to ensure a stable and reliable electrical connection.
3、 Functional characteristics
Input indicator light: Each input point is equipped with an independent LED indicator light, which displays the real-time status of the input signal for easy debugging and maintenance.
Input filtering function: Built in digital filter, adjustable filtering time from 0 to 32ms, effectively filtering out on-site noise interference and improving signal stability.
Input delay setting: Supports ON/OFF delay function (0-32ms), which can avoid misoperation caused by input signal jitter.
Compatibility: Supports Fujitsu/OTAX or MIL connector interfaces, adapting to diverse on-site wiring needs.
4、 Environmental adaptability
Working temperature: 0 ℃ to 55 ℃, meeting the temperature requirements of conventional industrial environments.
Storage temperature: -25 ℃ to 70 ℃, suitable for extreme storage or transportation conditions.
Humidity range: 10%~90% RH (no condensation), suitable for humid or dry environments.
Protection level: IP20, preventing solid foreign objects with a diameter greater than 12.5mm from entering.
5、 Electromagnetic compatibility and certification
Safety certification: Through international certifications such as CE, cULus, Lloyd, NK, etc., ensure compliance with global industrial safety standards.
Environmental standards: Compliant with RoHS3 specifications, moisture sensitivity level MSL1 (unlimited), suitable for scenarios with strict environmental requirements.
Electromagnetic compatibility: Resistant to power line interference of 2kV (IEC61000-4-4 standard), ensuring stable operation in complex electromagnetic environments.
