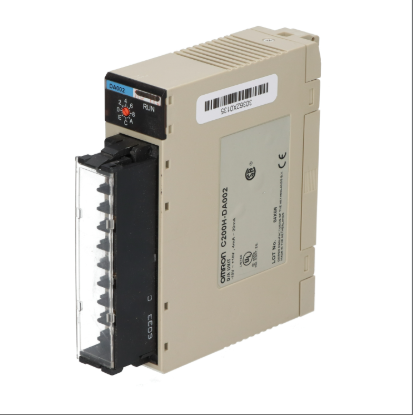

C200H-DA002
The C200H-DA002 model is an analog output module, belonging to the extended I/O unit of the C200H series PLC. It adopts a backplane installation method and is equipped with 4 independent channels of analog output function. It supports 4-20mA current signal and -10~10V voltage signal output, with resolutions of 1/4095 for current and 1/8190 for voltage respectively. The conversion speed is less than 2.5m/s point, and external wiring is achieved through detachable terminal blocks. It is compatible with the SYSBUS remote I/O system of C200H and CS1 series PLCs, and is suitable for industrial automation scenarios that require high-precision analog control, such as sensor signal calibration, actuator driving, etc.
Technical specifcations for C200H-DA002
Output points and channels: The C200H-DA002 module has 4 independent analog output channels, supports multi-channel parallel signal conversion, and is suitable for complex industrial scenarios.
Signal range and accuracy:
Support 4-20mA current signal and -10-10V voltage signal output to meet the driving needs of different actuators in industrial sites.
The current output resolution reaches 1/4095, and the voltage output resolution reaches 1/8190, ensuring high-precision analog control.
Conversion speed and response: With a conversion speed of less than 2.5m/s per point, it can quickly respond to control system instructions and is suitable for automation scenarios that require high real-time performance.
Electrical connection and installation:
Adopting a detachable terminal block design, supporting 0.2-2.5mm ² wire diameter wiring for easy on-site maintenance and debugging.
Compatible with the SYSBUS remote I/O system of C200H and CS1 series PLCs through backplane installation, supporting distributed control architecture.
Functional features:
Built in output limiting, upper/lower limit alarm, and pulse output functions enhance system safety and stability.
Support SFC (Sequential Function Diagram) language programming, with structured programs that are easy to write, read, and debug.
System compatibility: Compatible with C200H series PLC, supports high-performance communication networks such as SYSMAC NET, SYSMAC LINK, and SYSMAC BUS/2, and can achieve multi-layer and remote programming through FINS protocol.
Scalability: Supports parallel dual I/O expansion systems, with easily configurable expansion unit addresses and an expansion length of up to 50m, meeting large-scale industrial control requirements.
Performance indicators:
The scanning time for every thousand basic instructions is only 0.125ms, and the data area capacity is 256K words, suitable for high-speed and high-capacity control scenarios.
Equipped with load short-circuit detection function, the comprehensive accuracy reaches ± 0.2% for voltage and ± 0.4% for current, ensuring system reliability.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
