KEYENCE Pz-M32P Square Reflective M8 Connector Type, PNP
Description

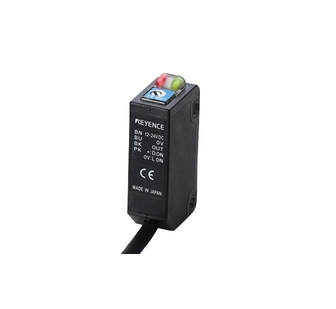

The Keyence PZ-M32P photoelectric sensor is a rectangular retroreflective sensor with built-in amplifier and M8 connector. Has reverse polarity protection, maximum current protection, and surge absorber.
Technical characteristics:
Series: PZ-M
Type: with multiple reflectors
Output type: PNP
Detection distance: 5 to 300 mm
Light source: red LED
Response time: 1 ms
Operating mode: LIGHT-ON / DARK-ON
Indication: output - orange LED, stable operation - green LED
Control output: up to 100 mA, up to 40 V, residual voltage up to 1 V
Supply voltage: 12 to 24 V DC. current
Current consumption: up to 30 mA
Case material: fiberglass reinforced plastic
Protection class: IP67
Ambient temperature: from -20 to +55 °C
Weight: 15 g

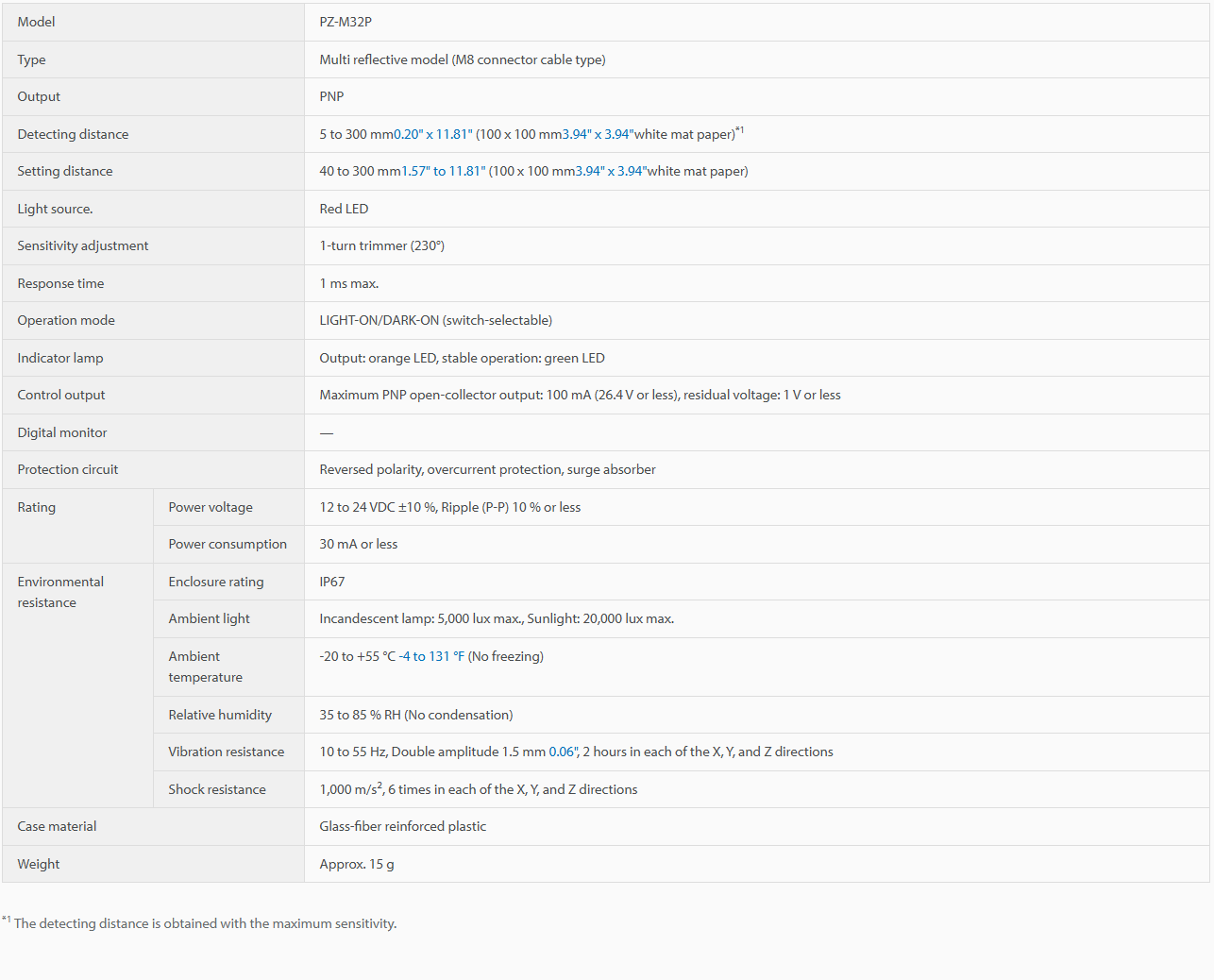

Technical Data
Our Services:
1、All our products are new and original, and of good quality.
2、Our prices are very competitive.
3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1)100% brand New and Original Factory Seal!
2)Warranty: 1 year
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3-7 days after payment
5) All the goods will be tested before shipment.
