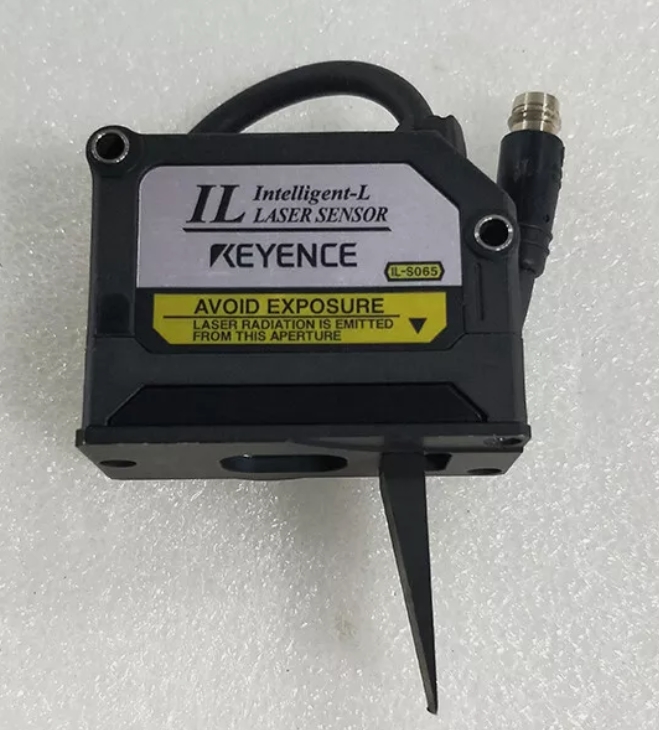

KEYENCE IL-S065 Sensor heads
Description
Manufacturer : Keyence
Product No. : IL-S065
Product Type : Multi-Function Analog Laser Sensor
Reference distance : 65 mm
Measurement range : 55 to 75 m
Light source :
Type : Red semiconductor laser, wavelength: 655 nm (visible light)
Laser class : Class 2 (FDA (CDRH) Part1040.10)*1, Class 2 (IEC 60825-1)
Output : 560 µW
Spot diameter (at standard distance) : Approx. 55 x 1,700 µm
Linearity :
±0.05% of F.S. (55 to 65 mm)*2*3
±0.075% of F.S. (55 to 75 mm)*2*3
Repeatability : 2 µm*4
Sampling rate : 0.33/1/2/5 ms (4 levels available)
Operation status indicators : Laser emission warning indicator: Green LED, Analogue range indicator: Orange LED, Reference distance indicator: Red/Green LED
Temperature characteristics : 0.02% of F.S./°C*3
Environmental resistance :
- Enclosure rating : IP67
- Pollution degree : 3
- Ambient light : Incandescent lamp - 10,000 lux*5
- Ambient temperature : -10 to +50 °C (No condensation or freezing)
- Relative humidity : 35 to 85 % RH (No condensation)
- Vibration resistance : 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Material :
- Housing material : PBT
- Metal parts : SUS304
- Packing : NBR
- Lens cover : Glass
- Cable : PVC
Technical Data
