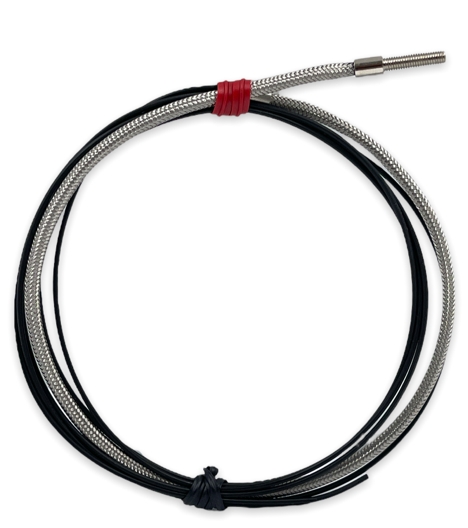

KEYENCE FU-35FG Reflective Fiber Unit
Description
Description: Reflective Fibre Unit
Weight: Approx 15 g
Footnotes: *1 The detecting distance is a value for white mat paper (the standard detection object) detections. *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
Ambient temperature: -40 to +50°C -40 to 122°F
Size: M3
Detection arrangement: Coaxial
Fibre unit length: 1 m39.37" free-cut
Fibre unit diameter: ø1.3×2
Shape: Straight
Minimum bend radius: R10 mm0.394" , stainless
Detection distance - MEGA/FINE - MEGA: 450 mm17.717"*1
Detection distance - MEGA/FINE - FINE: 72 mm2.835"*1
Detection distance - Other power modes - ULTRA: 290 mm11.417"*1
Detection distance - Other power modes - SUPER: 190 mm7.48"*1
Detection distance - Other power modes - TURBO: 115 mm4.528"*1
Detection distance - Other power modes - HSP: 36 mm1.417"*1
Minimum detectable object: Gold wire with a diameter of 0.005 mm0.0002" *2

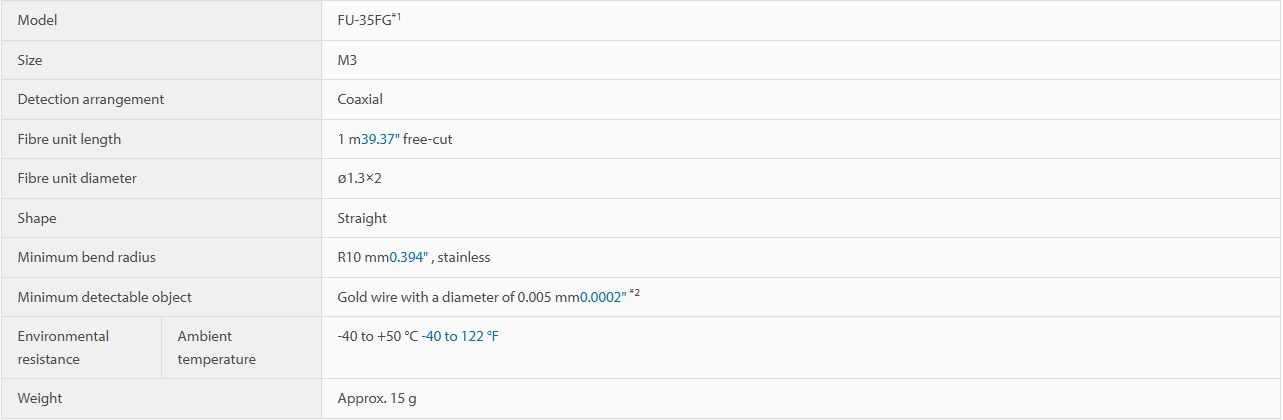

Technical Data
Our Services:
1、All our products are new and original, and of good quality.
2、Our prices are very competitive.
3、We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1)100% brand New and Original Factory Seal!
2)Warranty: 1 year
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3-7 days after payment
5) All the goods will be tested before shipment.
