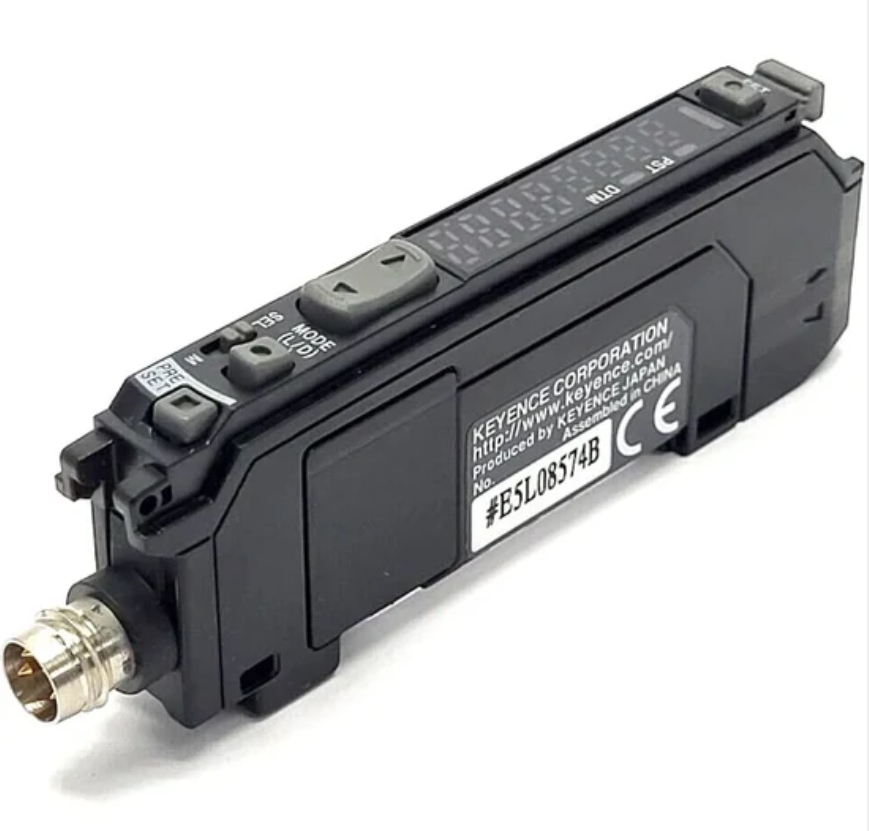

KEYENCE FS-N11CP Fibre Amplifier, M8 Connector Type, Main Unit, PNP
Description
Manufacturer : Keyence
Product No. : FS-N11CP
Product type : Fibre Amplifier, M8 Connector Type
Type : Standard 1 output M8 connector
Output : PNP
Main unit/Expansion unit : Main unit
Control output : 1 PNP open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less
External input : 1 Input time 2 ms (ON)/20 ms (OFF) or more (25 ms or more (ON/OFF) when external calibration is selected.)
Response time : 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA)
Response time : 500 µs
Multiple connections to Expansion units : Up to 16 units can be connected total (two output type is treated as two units)
Light source : Red, 4-element LED
APC : ON/OFF switchable (Factory setting: OFF)
Number of interference prevention units : 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.)
Power voltage : 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Current consumption : Normal: 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V). Eco on mode: 850 mW or less (35 mA max. at 24 V, 44 mA max. at 12 V). Eco Full mode: 520 mW or less (21 mA max. at 24 V, 26 mA max. at 12 V)
Ambient light : Incandescent lamp: Incandescent lamp: 20,000 lux or less, Sunlight: 30,000 lux or less
Ambient temperature : -20 to +55 °C (No freezing)
Relative humidity : 35 to 85 % RH (No condensation)
Case material : Both main unit and expansion unit housing material: Polycarbonate
Weight : 0.022 Kg
Shipping Weight : 1 Kg
Information
A versatile and robust Fibre Optic Sensor/Amplifier, which forms part of Keyence’s FS-N (FS-NEO) series, is easy to install and setup with a single click that calibrates sensitivity and resets the display. This optical sensor/amplifier features, ample beam power and accuracy, an easy to read display, a PNP output and an automatic maintenance function that detects light intensity due to dirt or misalignment. A power boost function that can switch the sensor to its highest setting can be easily selected using a dip switch.
This feature cancels the effects of the ambient environment, enabling the sensor to continue to perform and returns the sensor to its original display state, reducing maintenance and setup time. An instant alarm readout alerts the user to potential issues while the sensor is in operation.
These sensors can be slotted together easily, reducing installation space and up to 16 sensors can be linked together. When adding sensors, the power is supplied from the connector
The fibre optic sensor can be calibrated from a PLC or other external devices, and changeover time can be reduced even when sensor settings must be changed frequently. Regularly using the preset function from an external input ensures uninterrupted, stable detection, even in harsh environments. This function is useful when using multiple sensors, allowing you to quickly locate sensors that have become dirty or misaligned.
Fibre Optic Sensor Features
Voltage rating 12 to 24 VDC
PNP Output
Vibrant display
Light source 4-element LED
Rapid response time
Power boost function
1 Standard Output, M8 Connector
Control Outputs – 1
External Inputs – 1
Ethernet connectivity, RJ45 x 2
M8 connector
Polycarbonate construction

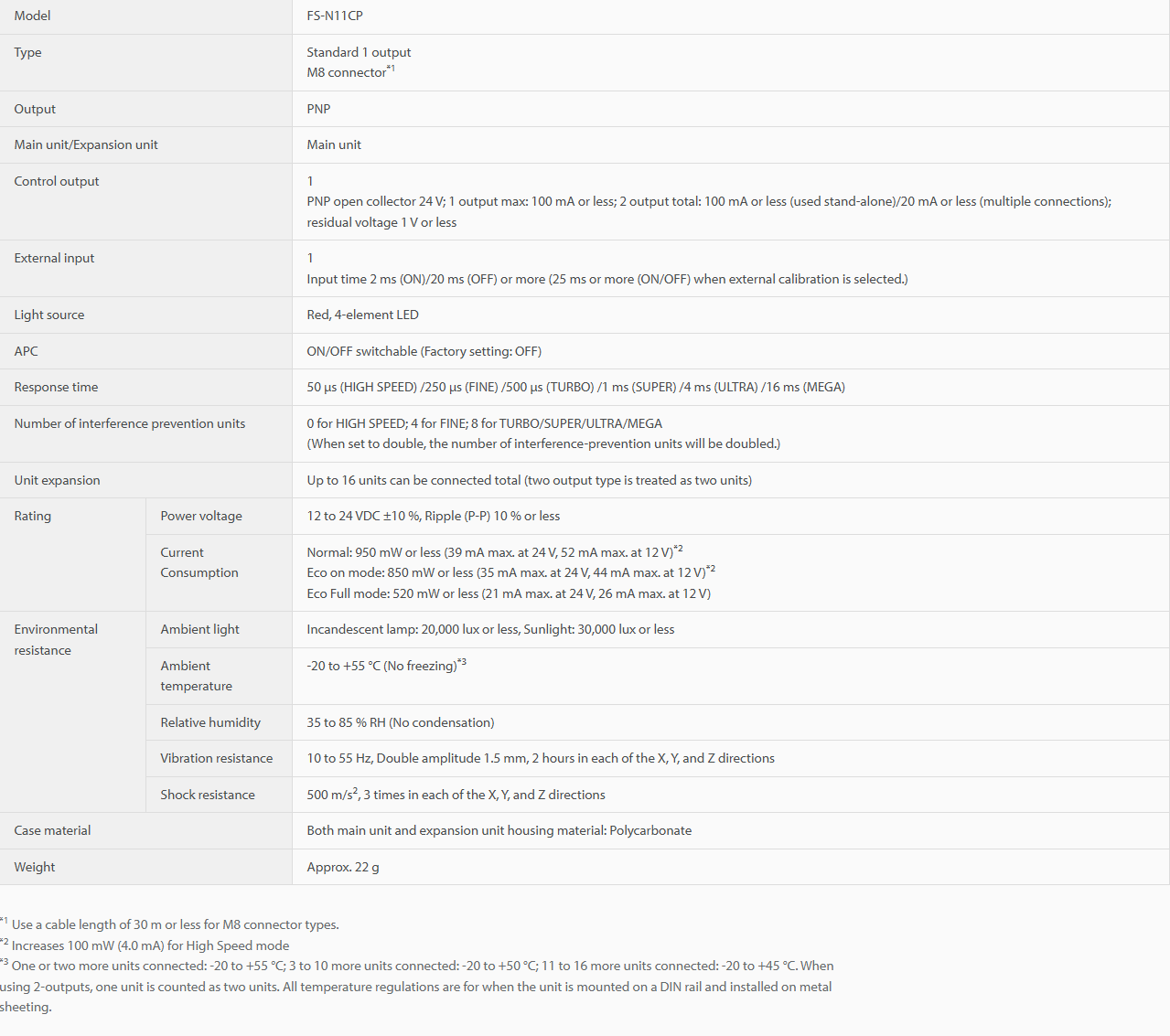

Technical Data
